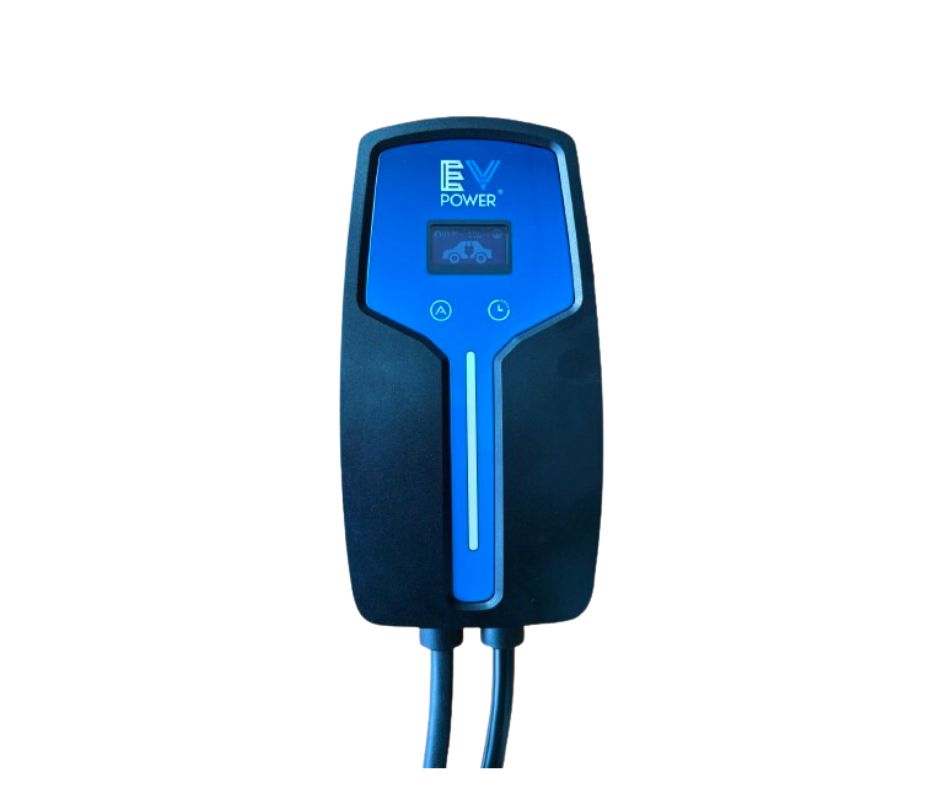

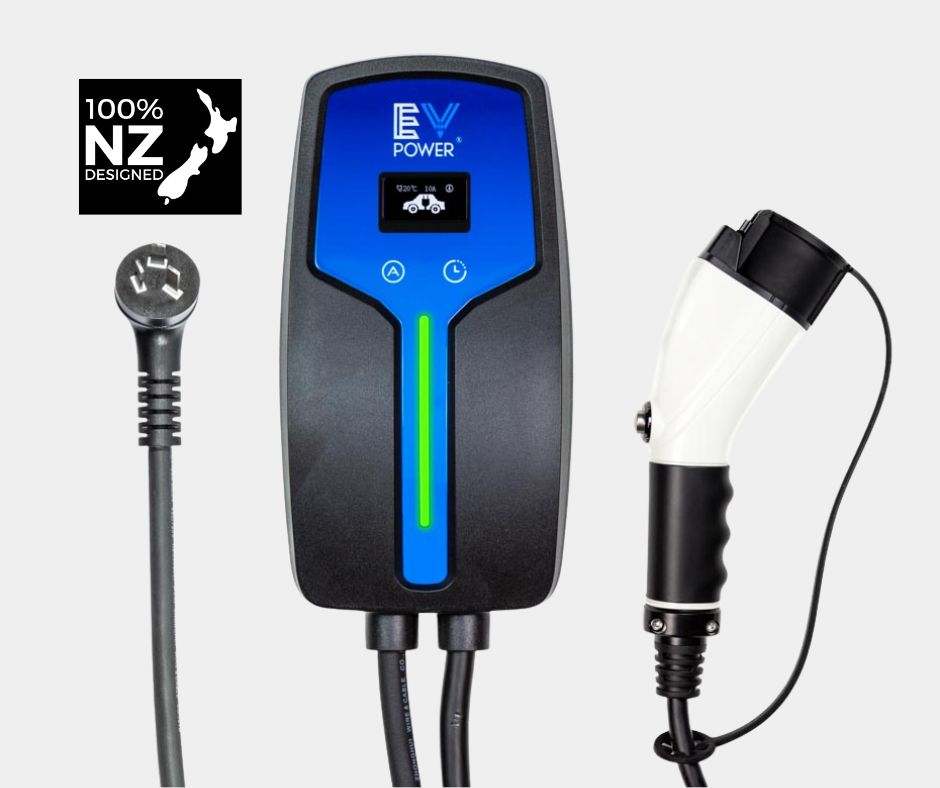

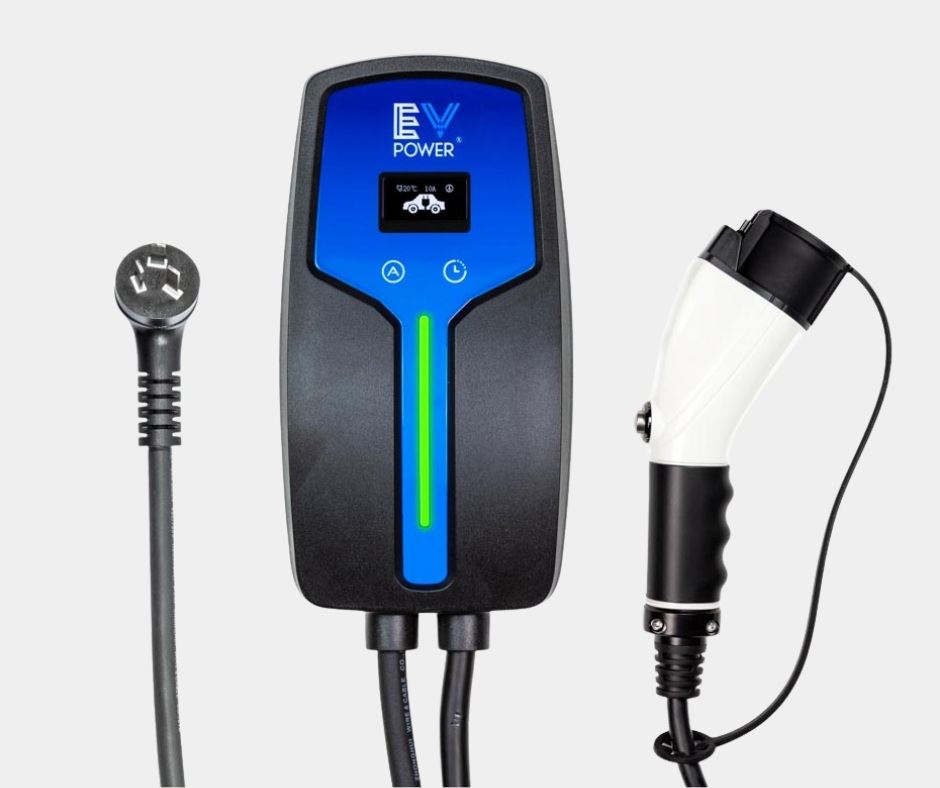

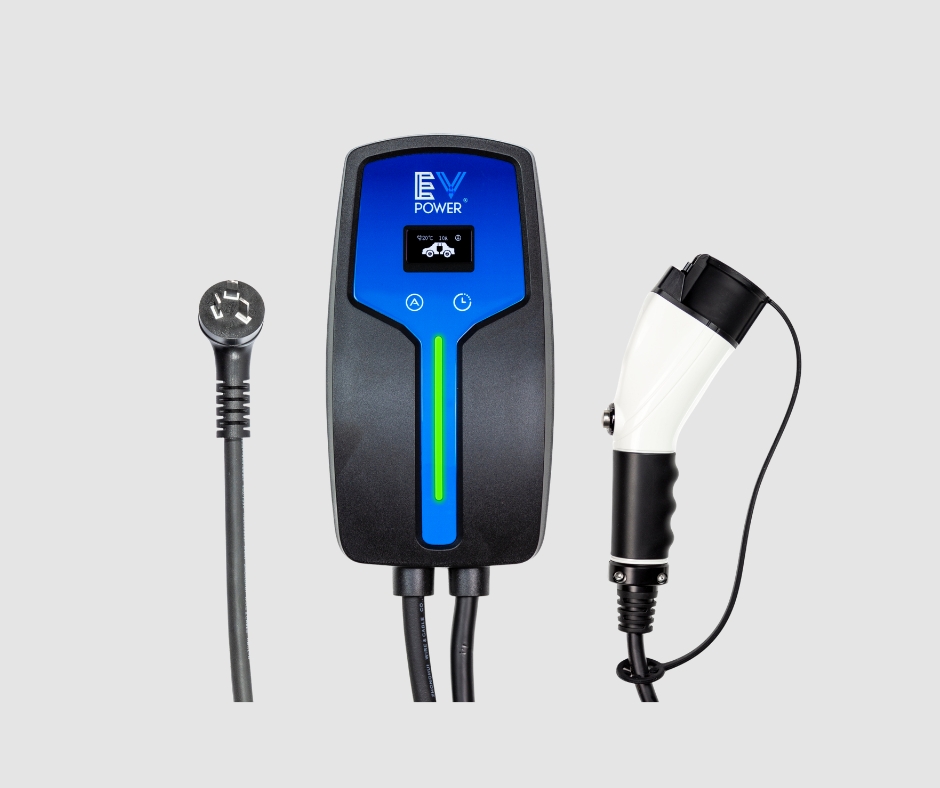

Classic Plus 5.0 Type 1, Charger Cable 10 Amp

The EV Power Classic Plus 5.0 is a cutting-edge portable EV charging solution designed right here in New Zealand for Ex-Japan Type 1 vehicles. Engineered for reliability, safety, and style, this charger offers a hassle-free way to power your EV at home or on the go. With its robust construction and advanced features, the Classic Plus 5.0 is built to meet the needs of Kiwi EV drivers.

We have designed this portable charging cable so that it is super easy to wall mount. Keeping the product up off the ground means you’ll reduce the wear and tear.

Compatibility

This EV charging cable will only fit Type 1 EV/PHEV. if you are unsure please see our helpful page on identifying your EV here.

Key Features

• Delayed start (up to 12 hours) to use cheaper off-peak power
• Charging Timer for convenience and control (up to 12 hours)
• Designed for Durability: The Classic Plus 5.0 features a unique wall-mountable base design is used to better protect against water ingress and enhance elegance. Built to last, it’s a product you can rely on for years.
• Flexible Charging Options: Switch between 6A, 8A, or 10A settings to suit your vehicle or power availability.
• User-Friendly OLED Display: Easily view charging time, delivered power, current rate, and voltage at a glance.

Specifications

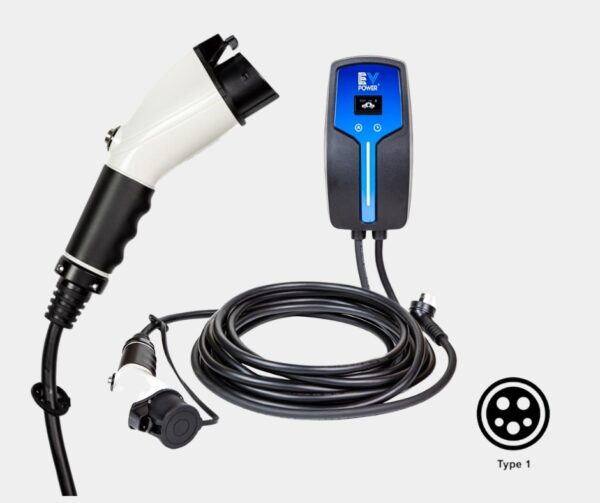

Cable Length: 1m inlet cord, 8m outlet cord (9m total).

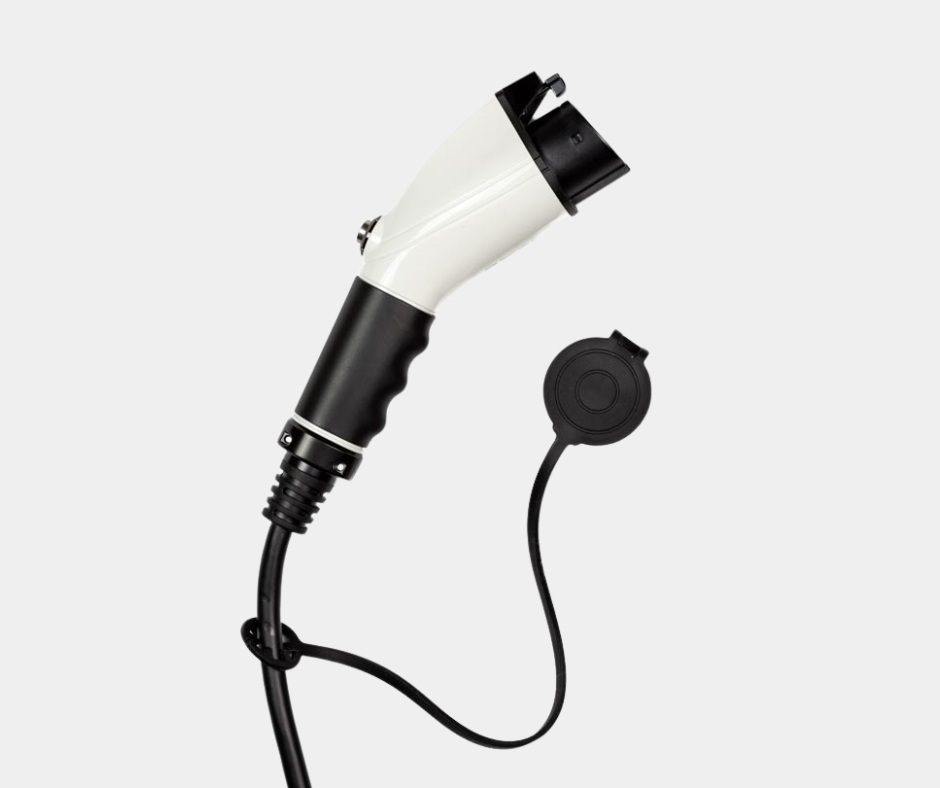

Connector Type: Type 1 suitable for EVs (ex-Japan)
Input Voltage: 230V AC, 50Hz
Rated Current: 6-10A
Rated Power: 2.3kW @ 10A
Power supply: 1-phase
Connector: Type 1
Plug: 10A
Dimensions: 220mm H x 110mm W x 64mm D
Weight: 3.1kg unboxed (3.8kg with carry case)

Working Environment

Working Temp: -30 to +50 degrees C
Humidity: 0-95% non-condensing
IP rate: IP 67 Dust- and water-resistant for safe use indoors or outdoors.
Work altitude: <3000m

Electrical Protection – Built for Safety

• Advanced Temperature Protection: Sensors in the plug pins ensure safe operation at full capacity, perfect for New Zealand’s 10A three-pin sockets.
• 6mA DC Fault Detection: Provides peace of mind by stopping DC feedback in the unlikely event of an onboard charger failure.
• Comprehensive Safeguards: Protection against overcurrent, overvoltage, and overheating (auto shut-off at 85°C) in compliance with IEC62752/IEC62196-2 and AS/NZ 3820;
• Residual current protection
• Leakage detection: 30 mA AC

Trusted New Zealand Design

Proudly developed in Christchurch in partnership with OEM Audio and INFact Design, the Classic Plus 5.0 reflects New Zealand innovation and commitment to quality. With over 50,000 EV products sold nationwide, you can trust the reliability of this locally crafted product.

Included Accessories

• Wall cradle for convenient mounting.

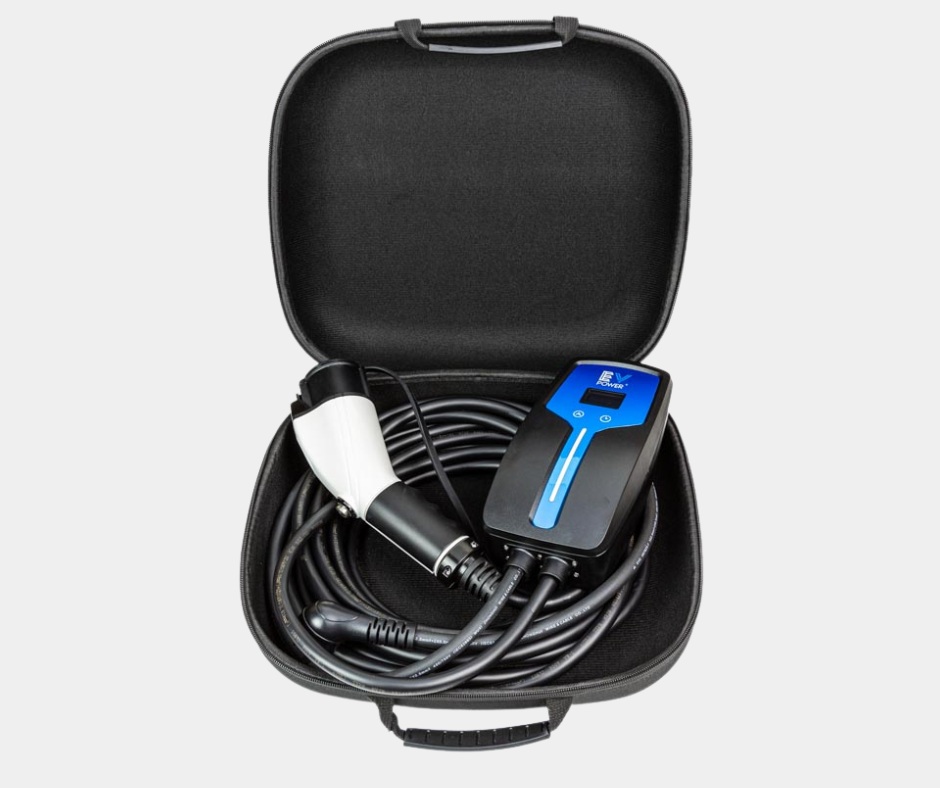

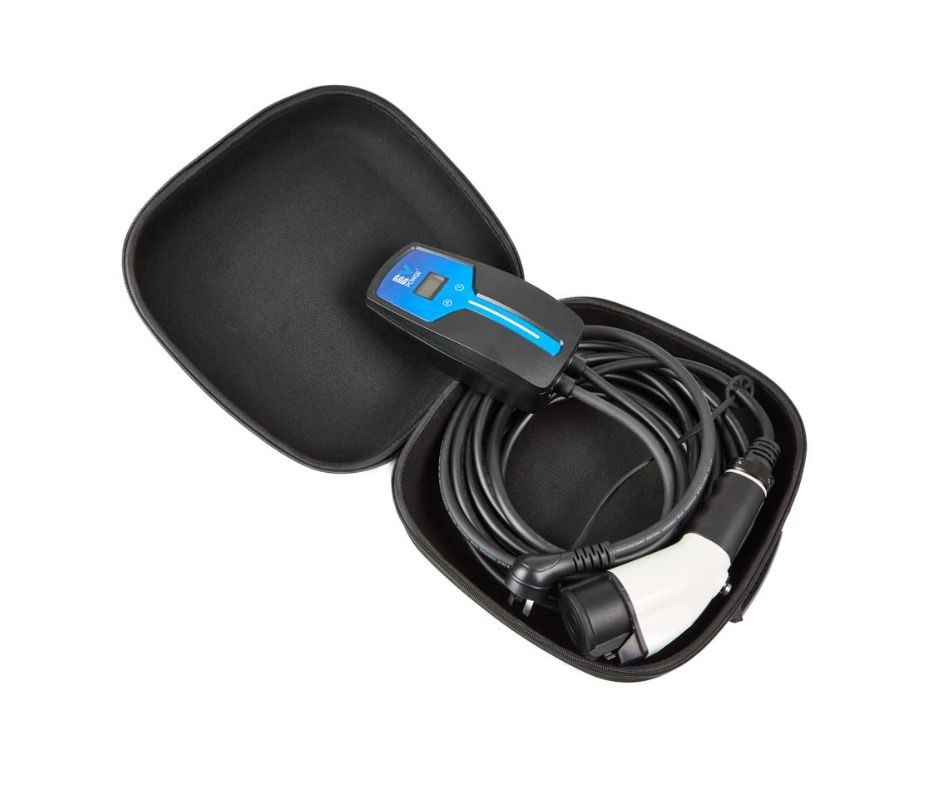

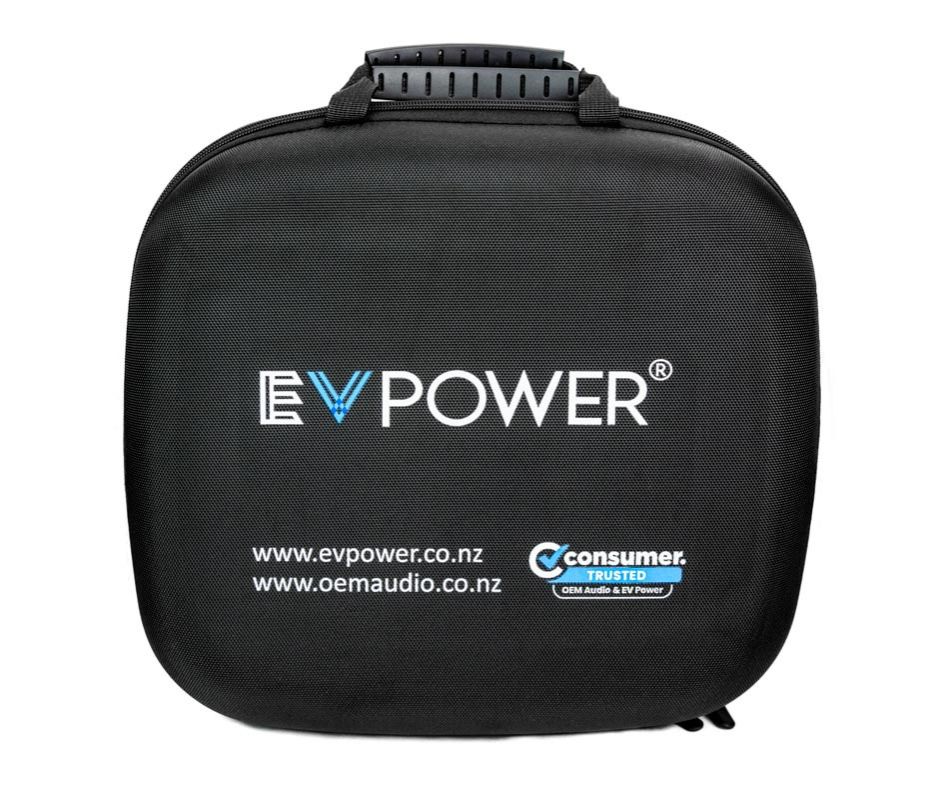

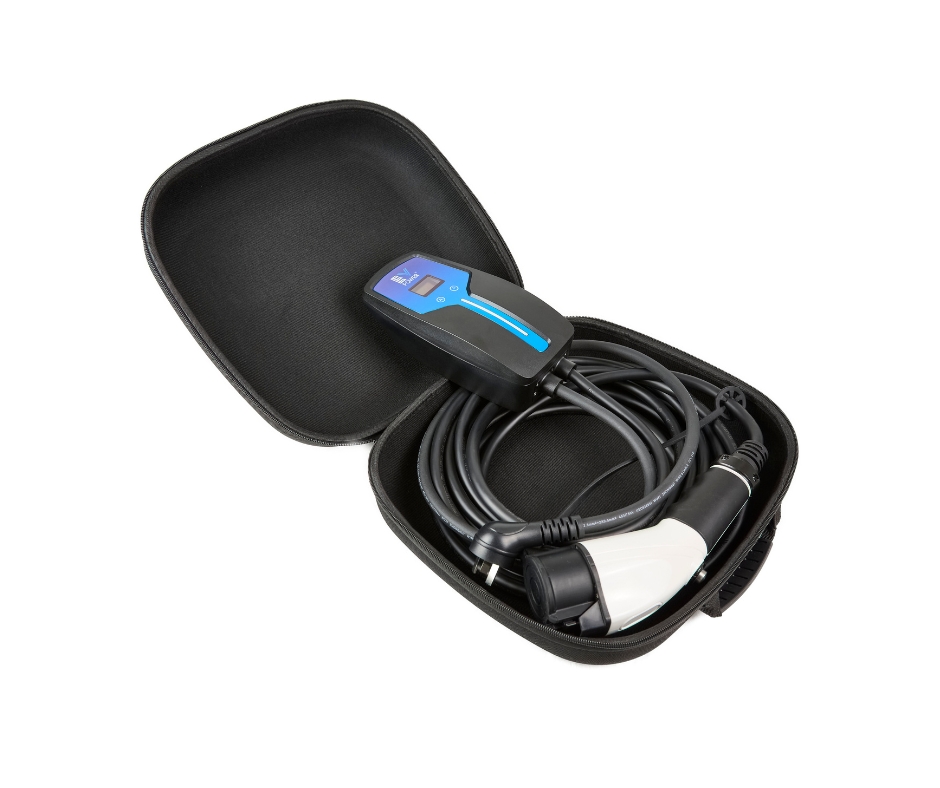

• Stylish, durable carry bag for portability.

Warranty

Enjoy peace of mind with a three-year warranty.

Get Yours Today
Ready to simplify your EV charging experience? The EV Power Classic 5.0 is available now. Whether at home or on the go, it’s the perfect charger for Kiwi drivers.
