Classic Plus 5.0 Type 2, Portable Charger Cable, 15 Amp
$479.00 Incl. GST
In stock
The EV Power Classic Plus 5.0 is a cutting-edge portable EV charging solution designed right here in New Zealand for NZ-new/Ex-UK Type 2 vehicles.
We have designed this portable charging cable so that it is super easy to wall mount. Keeping the product up off the ground means you’ll reduce the wear and tear. Proudly developed in Christchurch in partnership with OEM Audio and INFact Design, the Classic Plus 5.0 reflects New Zealand innovation and commitment to quality. With over 50,000 EV products sold nationwide, you can trust the reliability of this locally crafted product.
- Trusted New Zealand Design
- Reliability
- Safety
- Style
**Australian customers only
Compatibility
This EV charging cable will only fit Type 2 EV/PHEV. if you are unsure please see our helpful page on identifying your EV here.
This EV charging cable will only plug in to a 3-pin socket as found in Australian homes and businesses.
Key Features
- Delayed start (up to 12 hours) to use cheaper off-peak power
- Charging Timer for convenience and control (up to 12 hours)
- Designed for Durability: The Classic Plus 5.0 features a unique wall-mountable base design for better protection against water ingress and enhanced elegance. Built to last, it’s a product you can rely on for years.
- Flexible Charging Options: Switch between 6A, 8A, or 10A settings to suit your vehicle or power availability.
- User-Friendly OLED Display: Easily view charging time, delivered power, current rate, and voltage at a glance.

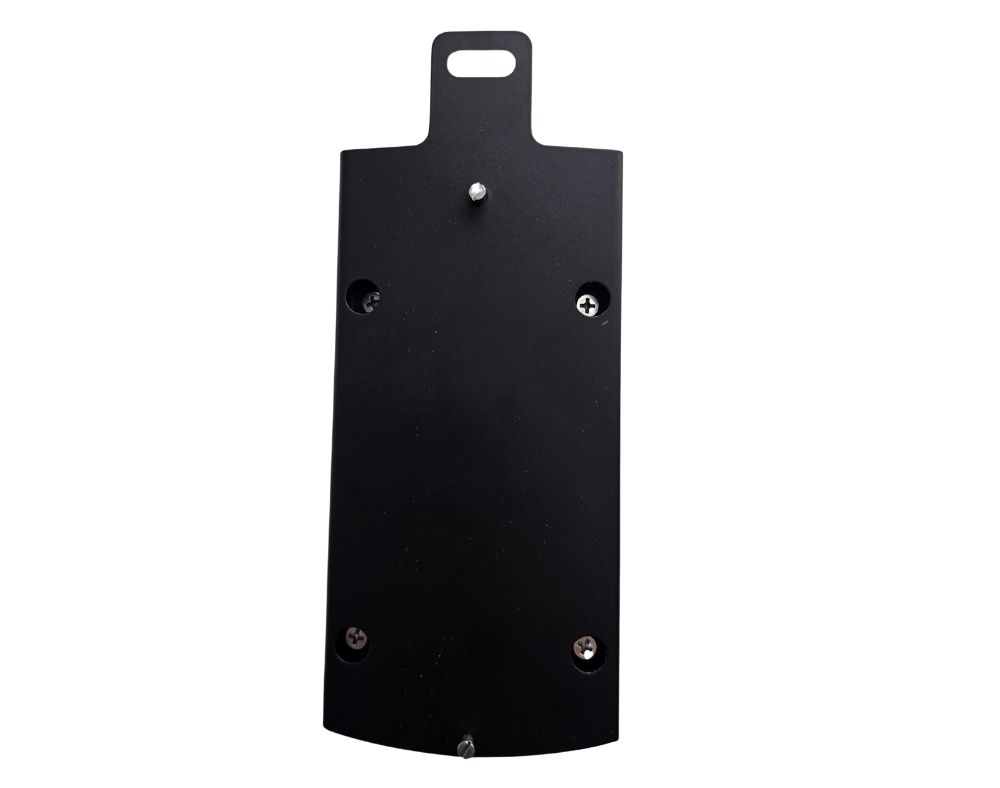

- Bracket for Wall mounting: Included with charger, makes your portable charger appear to “float” on the wall
- IP67 Rating: Dust- and water-resistant for safe use indoors or outdoors.
- Advanced Temperature Protection: Temperature Sensors in the plug pins ensure safe operation at full capacity, perfect for three-pin sockets.
- 6mA DC Fault Detection: Provides peace of mind by stopping DC feedback in the unlikely event of an onboard charger failure.
- Comprehensive Safeguards: Protection against overcurrent, overvoltage, and overheating (auto shut-off at 85°C) in compliance with IEC62752/IEC62196-2 and AS/NZ 3820;
- Residual current protection
- Leakage detection: 30 mA AC
- Over/Under frequency protection
- Wall cradle for convenient mounting.
- Stylish, durable carry bag for portability.
Specifications
- Cable Length: 1m inlet cord, 8m outlet cord (9m total).
- Connector Type: Type 2 suitable for EVs (NZ-new or ex-UK)
- Input Voltage: 230V AC, 50Hz
- Rated Current: 6-15A
- Rated Power: 3.5kW @ 15A
- Power supply: 1-phase
- Connector: Type 2
- Plug: 15A
- Dimensions: 220mm H x 110mm W x 64mm D
- Weight: 3.1kg unboxed (3.8kg with carry case)
- Working Temp: -30 to +50 degrees C
- Humidity: 0-95% non-condensing
- IP rate: IP 67. Learn more about IP Ratings here
- Work altitude: <3000m
Warranty
Enjoy peace of mind with a three-year warranty.
