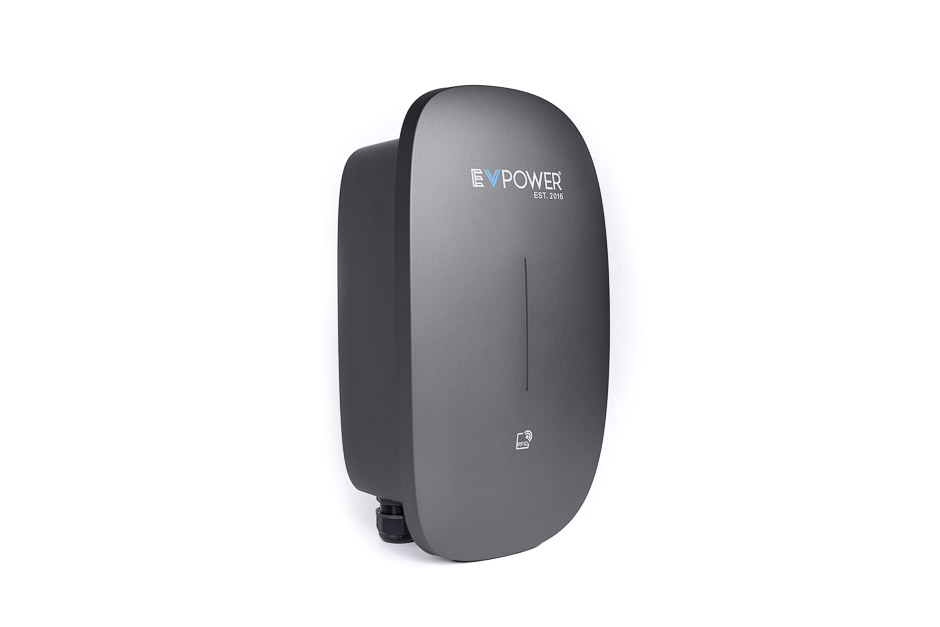

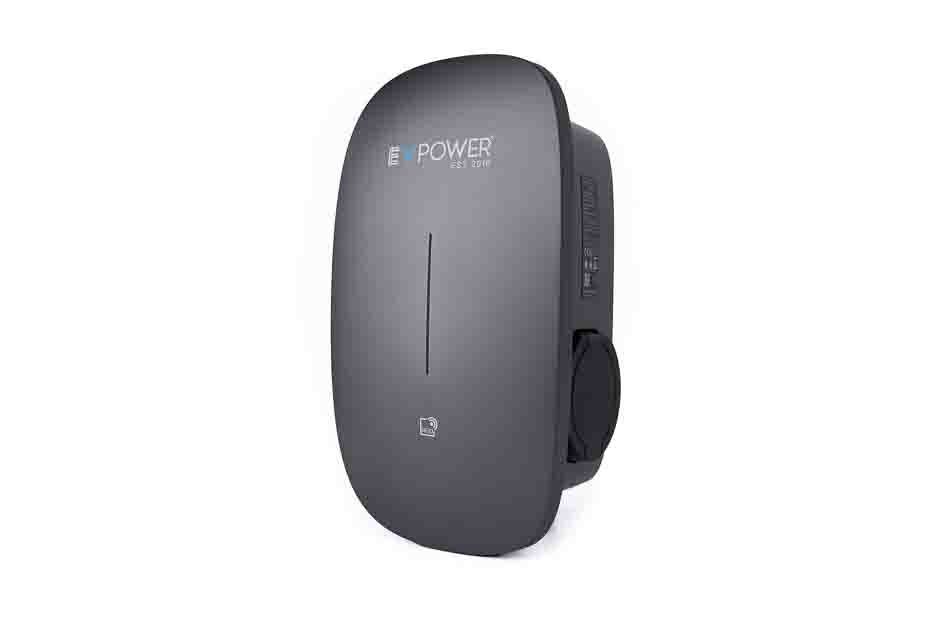

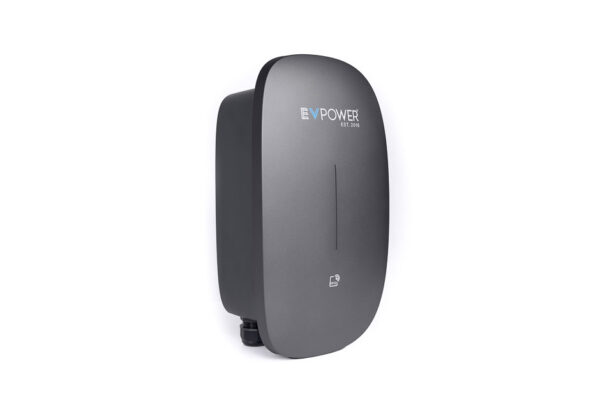

Compact. Smart. NZ-ready.

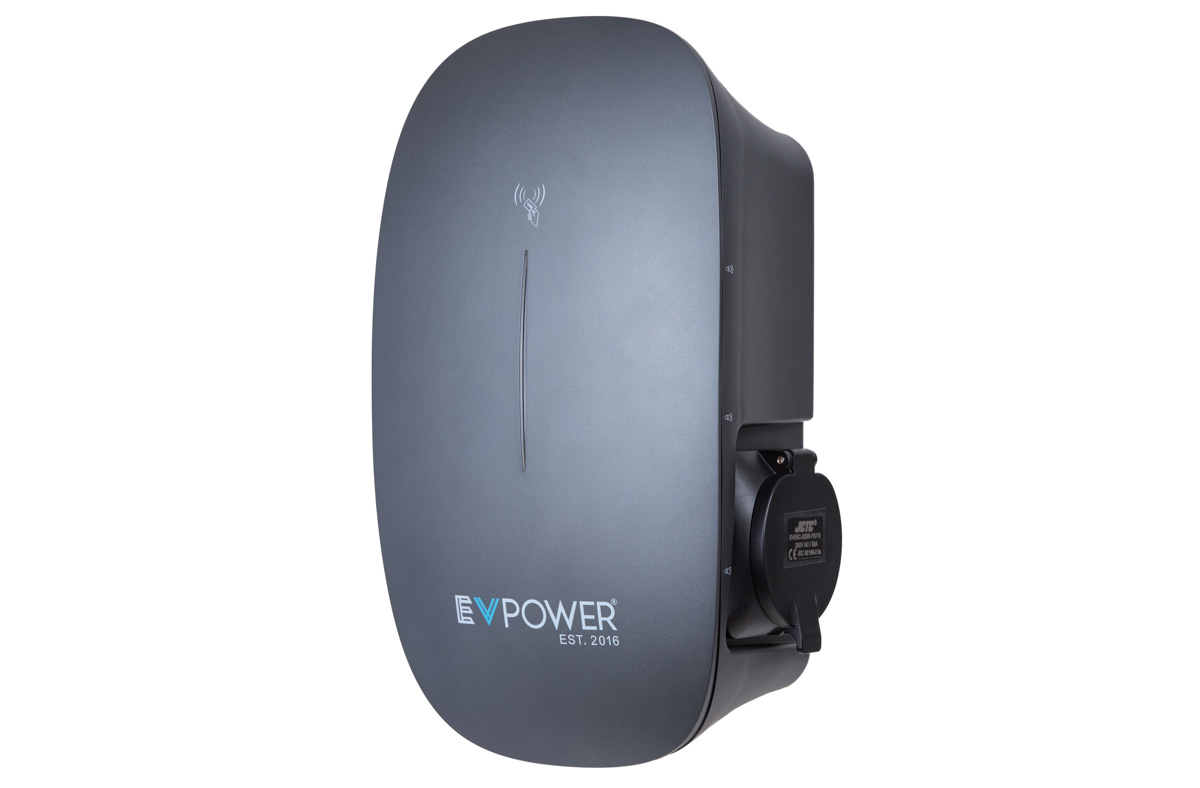

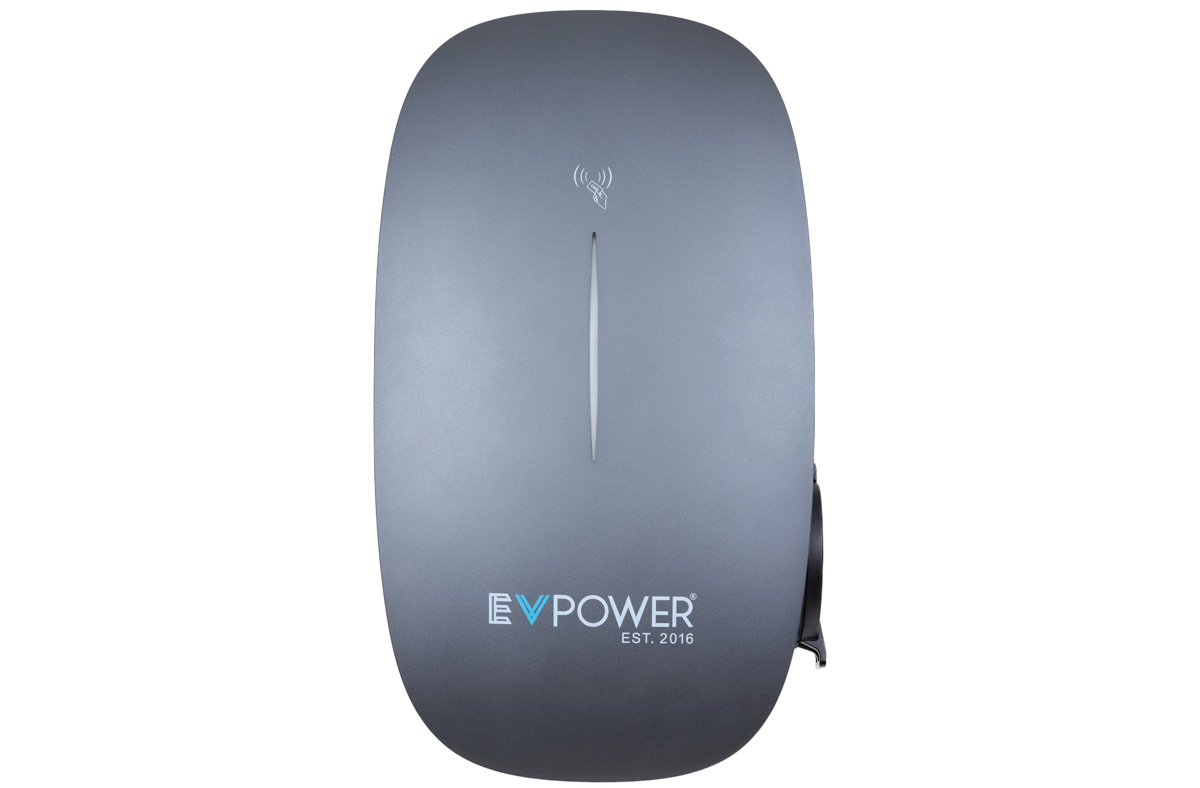

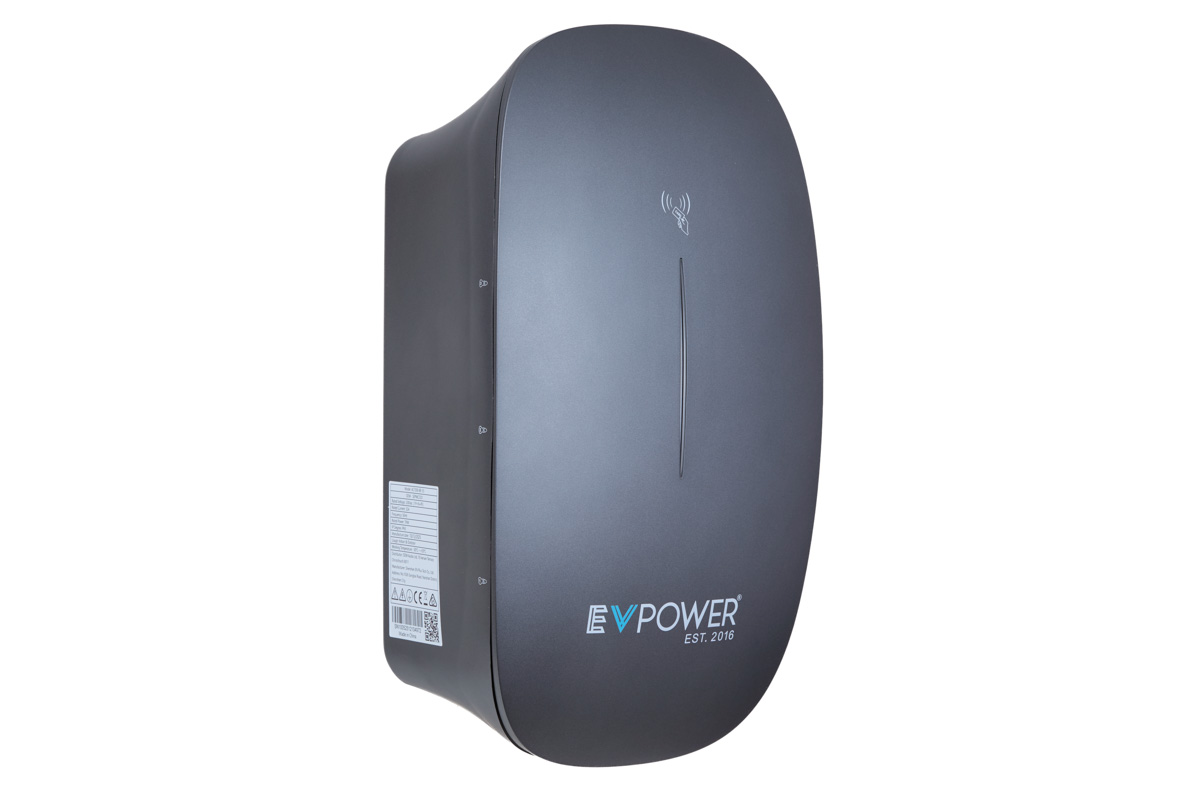

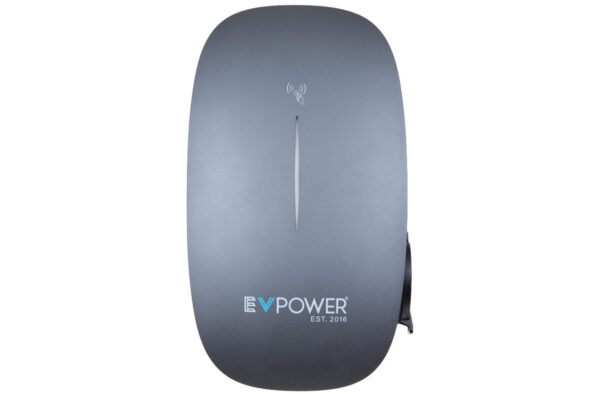

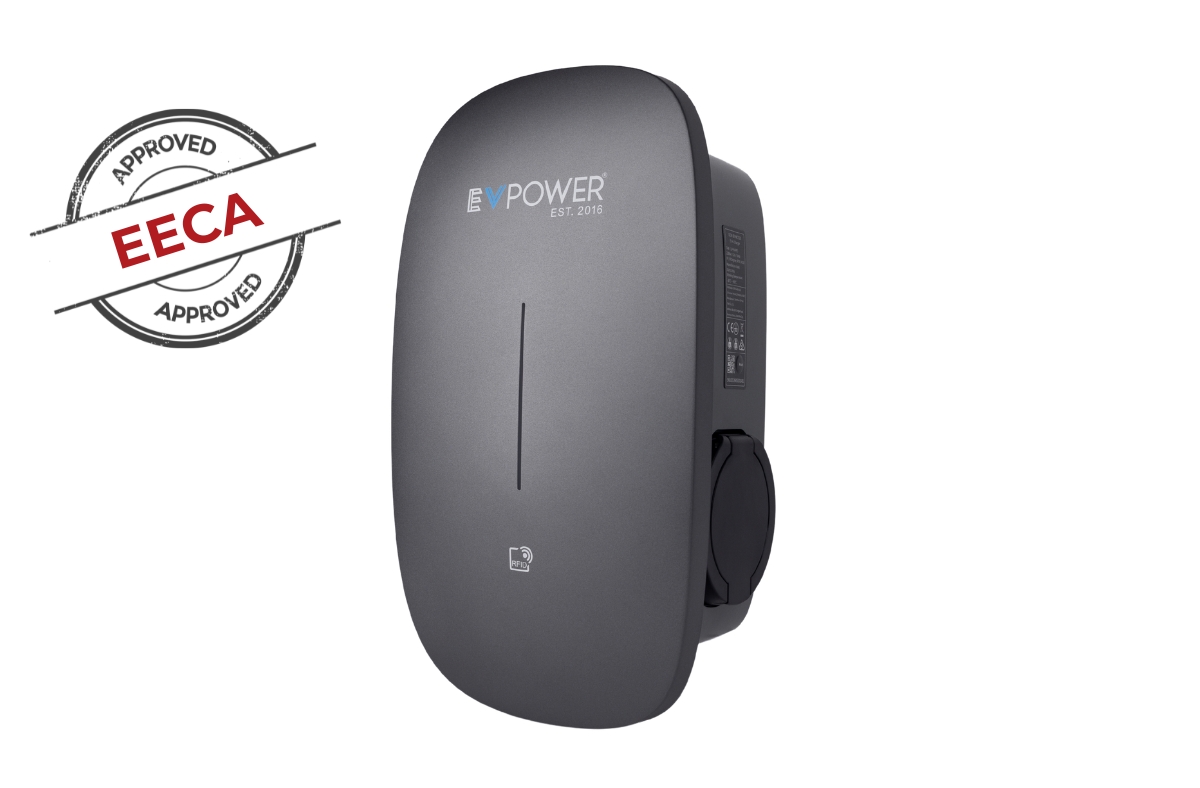

The EcoCharge 7kW Wall Charger with OCPP, delivers reliable everyday charging while protecting your property’s electrical supply. Control via the app, RFID swipe card, or simple plug-and-charge operation. Ideal for homes, holiday properties, shared driveways, and light commercial installations.

7 kW.
Untethered.
Built-in smart charging features.
Dynamic load balancing included.
Solar-ready capability.

Compatibility

Will suit Type 2 and Type 1 electric vehicles and plug-in hybrids.
BYO lead. Shop now.
Designed with New Zealand homes and light commercial installations in mind.

Key Features

7 kW.
Single-phase charging (up to 32 A).
Untethered.

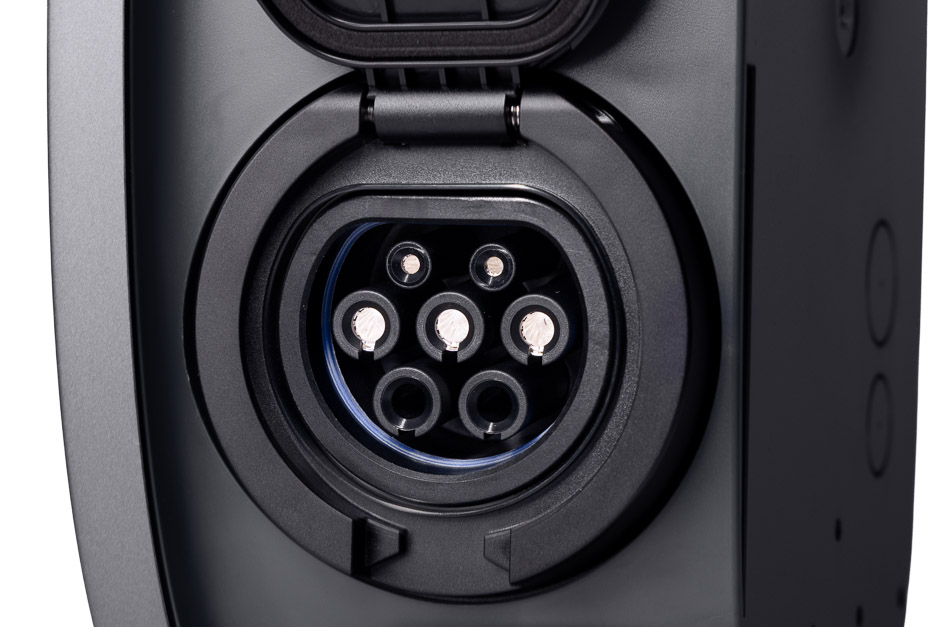

Type 2 socket (IEC 62196).
Dynamic Load Balancing automatically adjusts charging power based on site demand, helping reduce nuisance tripping and protecting the main supply.

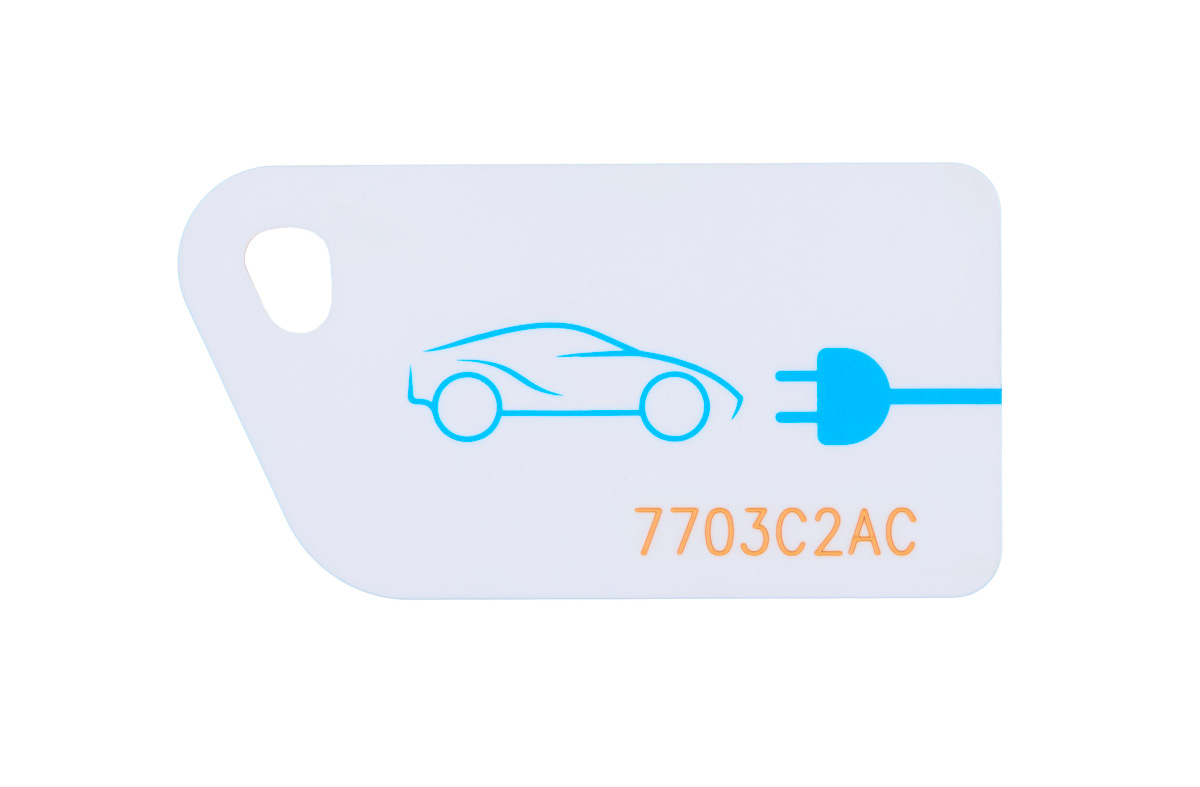

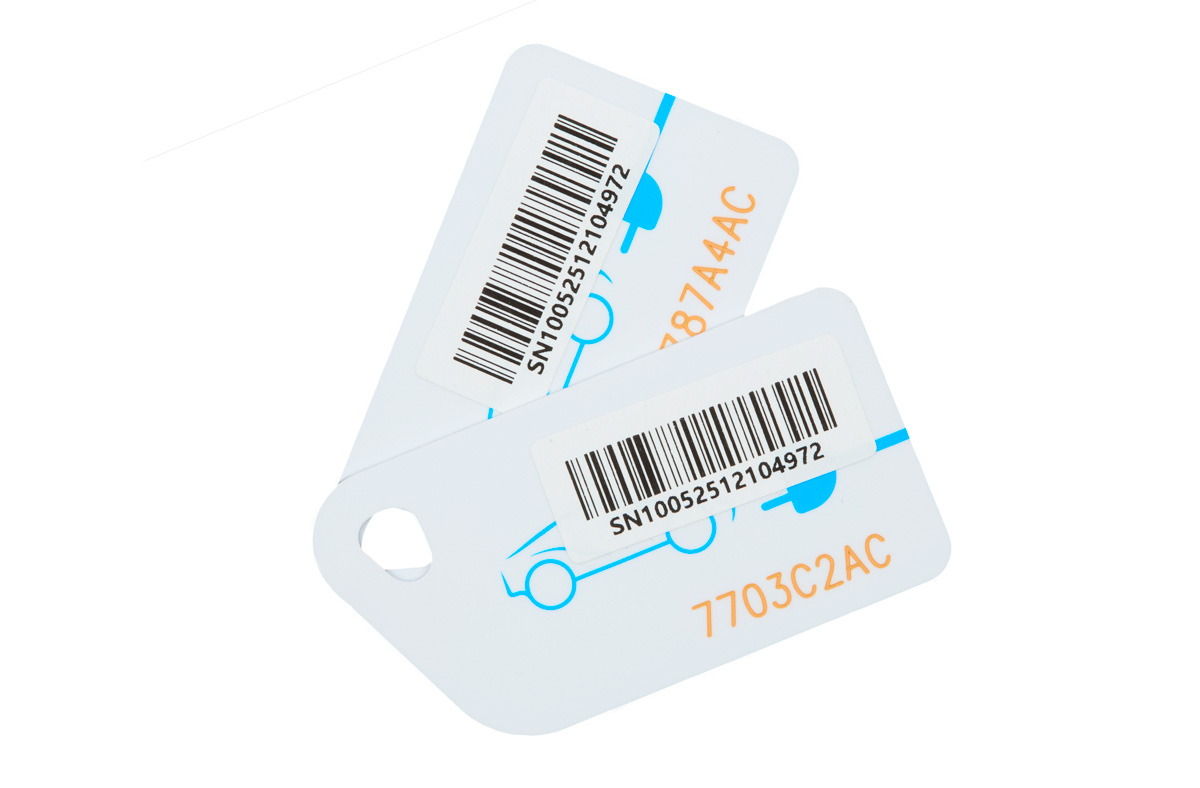

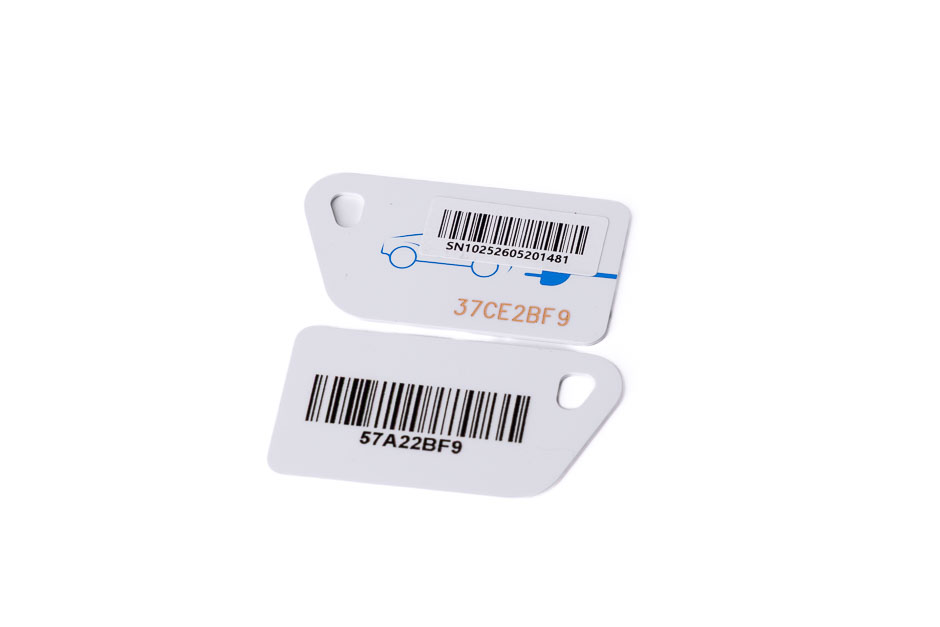

RFID cards (x2) included for access control (optional)

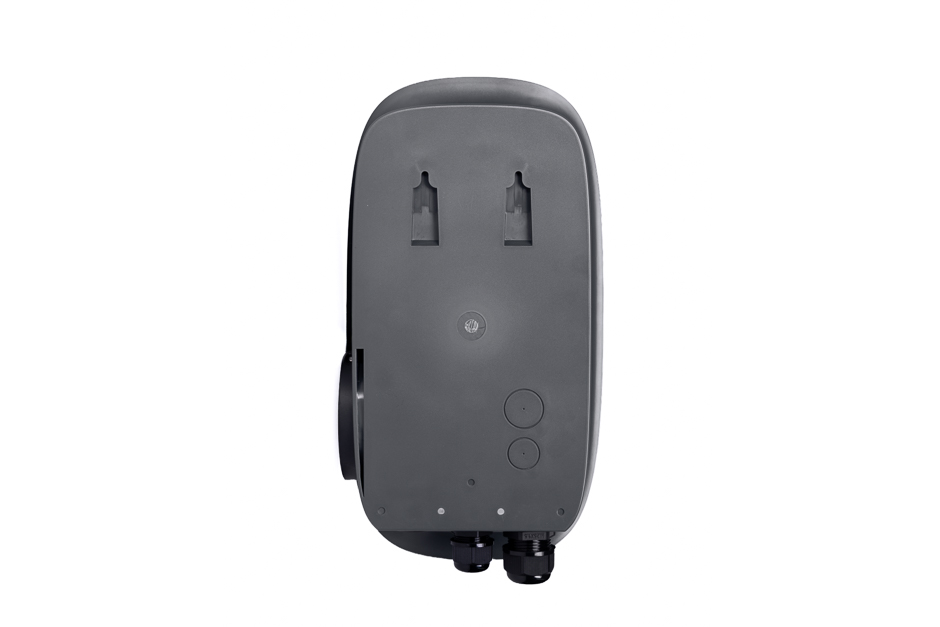

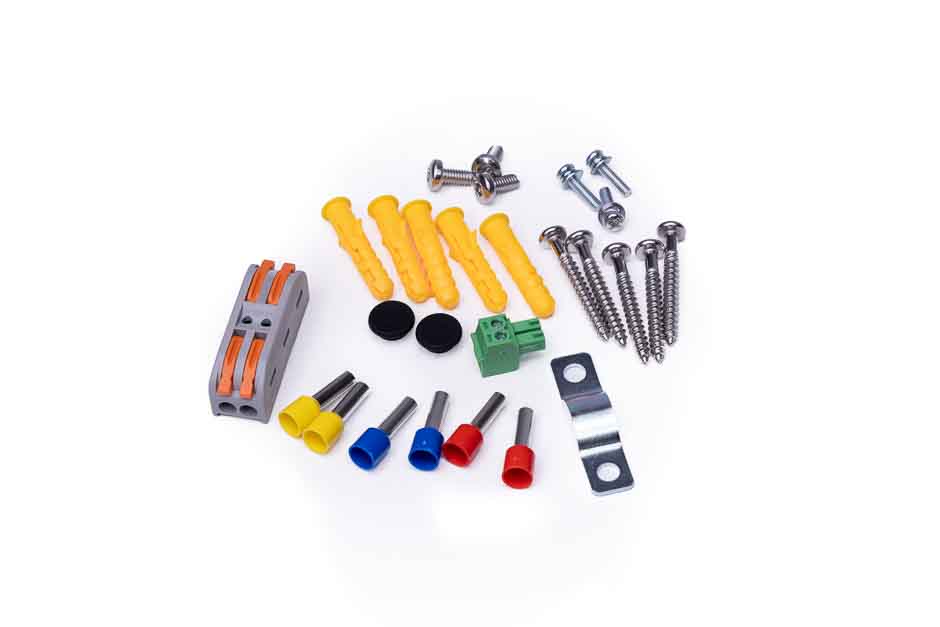

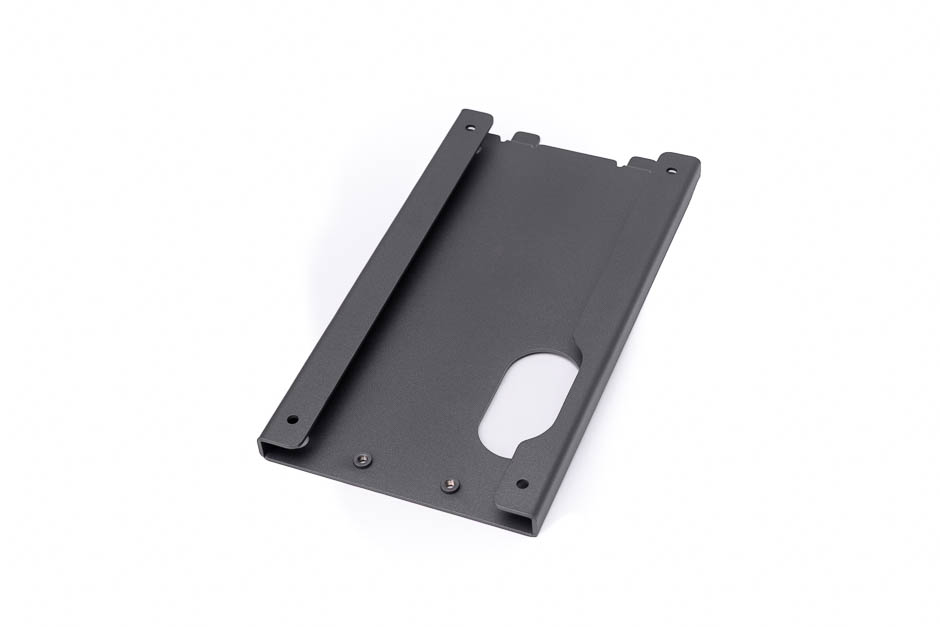

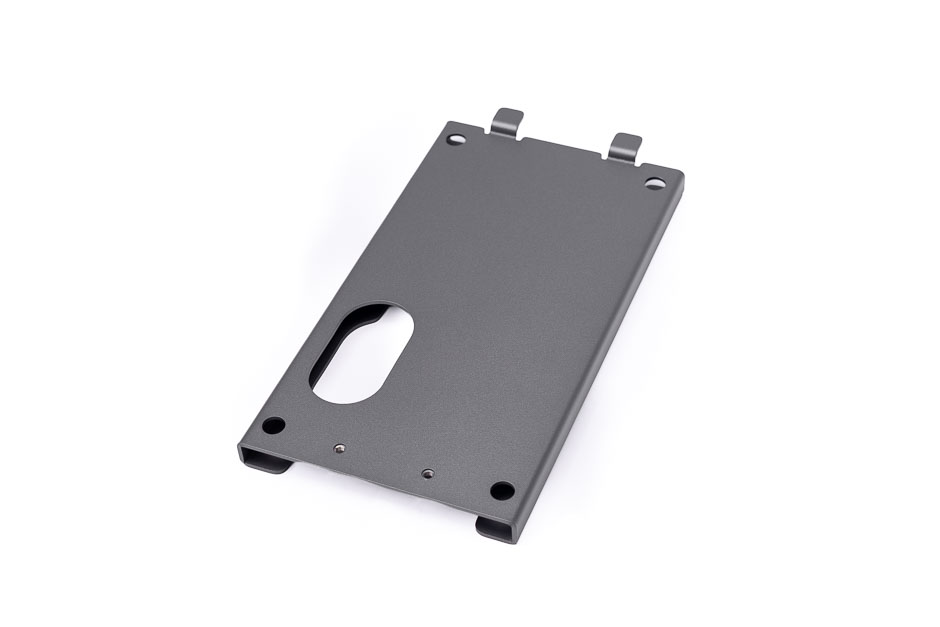

Mounting hardware and installation accessories supplied.
User manual – please read before use.

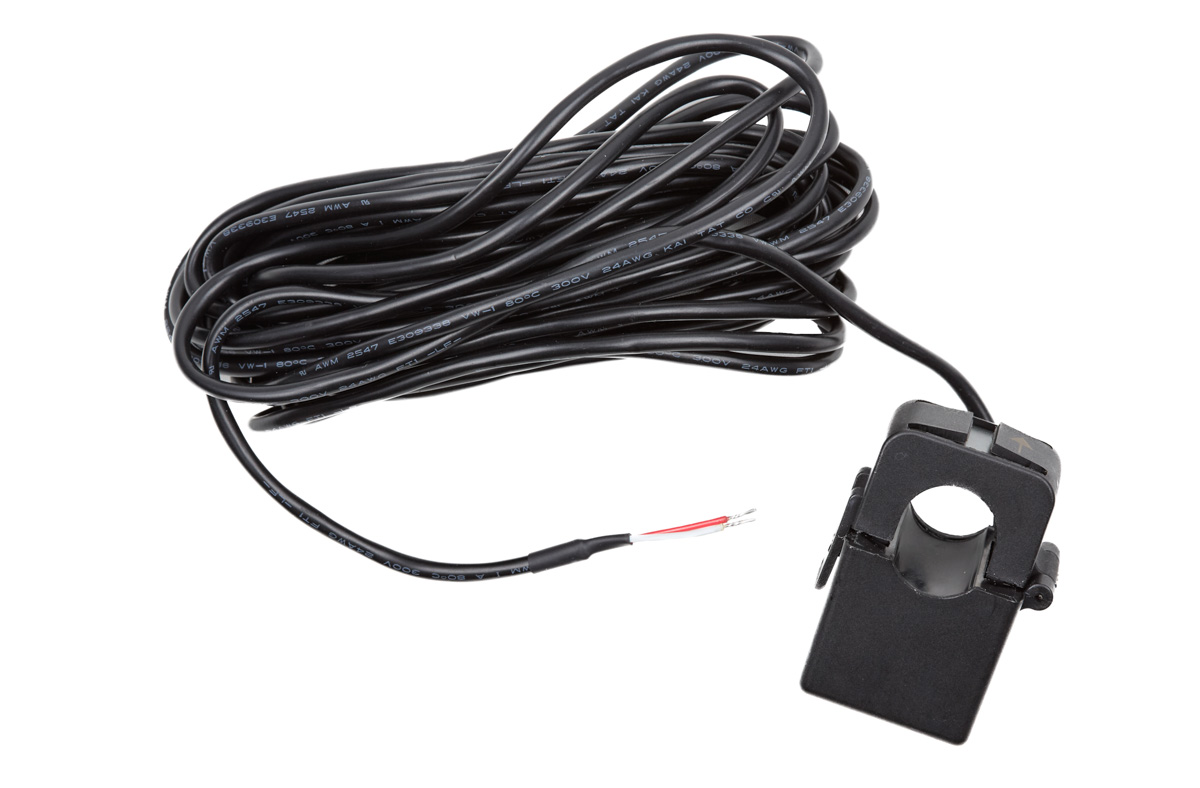

CT clamp supplied with every unit to help prevent overload of the main supply.
Solar-ready/PV compatible with optional accessories.
‘Evchargo’ smart app for global remote access.
Multiple charging modes
- App control
- RFID card access
- Plug-and-charge

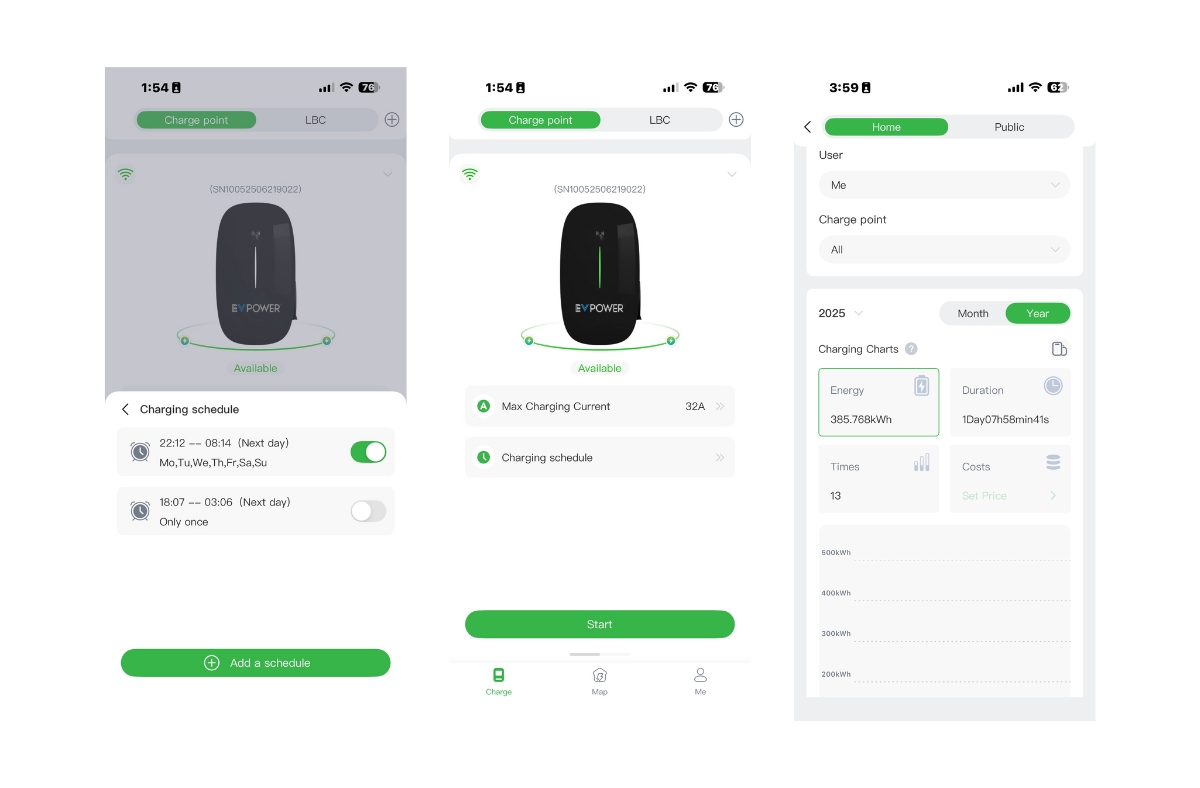

‘Evchargo’ App Features

- Worldwide remote access – Start, stop, and monitor charging sessions from anywhere with internet access.
- Detailed charging reports – Daily/Weekly/Monthly/Yearly.
- Energy and cost tracking – Enter your electricity price and the app will automatically calculate the cost of charging your vehicle.
- Smart scheduling – Set charging times to suit off-peak power or household demand.
- Live charging data – View real-time charging status, power delivery, and session history.
- Customise access control.

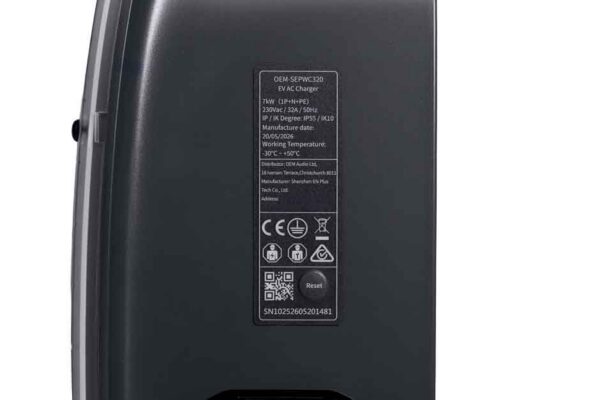

Technical Specifications

Rated power: 7 kW
Built-in electrical protection.
30 mA Type A RCD
6 mA DC DC leakage detection
OCPP 1.6 compatible
IP65 rated enclosure – suitable for indoor or outdoor installation

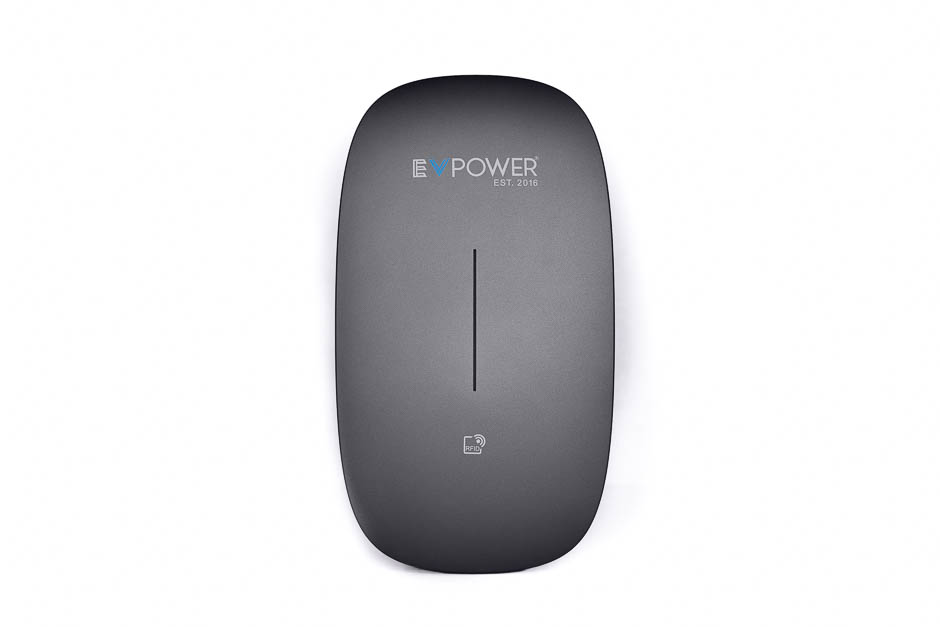

LED charging status indicator
Bluetooth as standard
Wi-Fi / Ethernet / 4G supported depending on configuration
Supply: Single-phase, 230 V AC
Maximum current: 32 A
Frequency: 50 Hz
Connector: Type 2 socket (untethered)
Ingress protection: IP65
Impact rating: IK08
Operating temperature: –30 °C to +50 °C
Authentication: App / RFID / Plug-and-charge
Communications: Bluetooth (standard)
Compliance: IEC 61851 series

Warranty

2 years when installation carried out by a Registered Electrician in accordance with AS/NZS 3000 and SNZ PAS 6011.
A Certificate of Compliance (CoC) and Electrical Safety Certificate are required before use.
Appropriate RCBO protection must be installed upstream in accordance with AS/NZS 3000.
