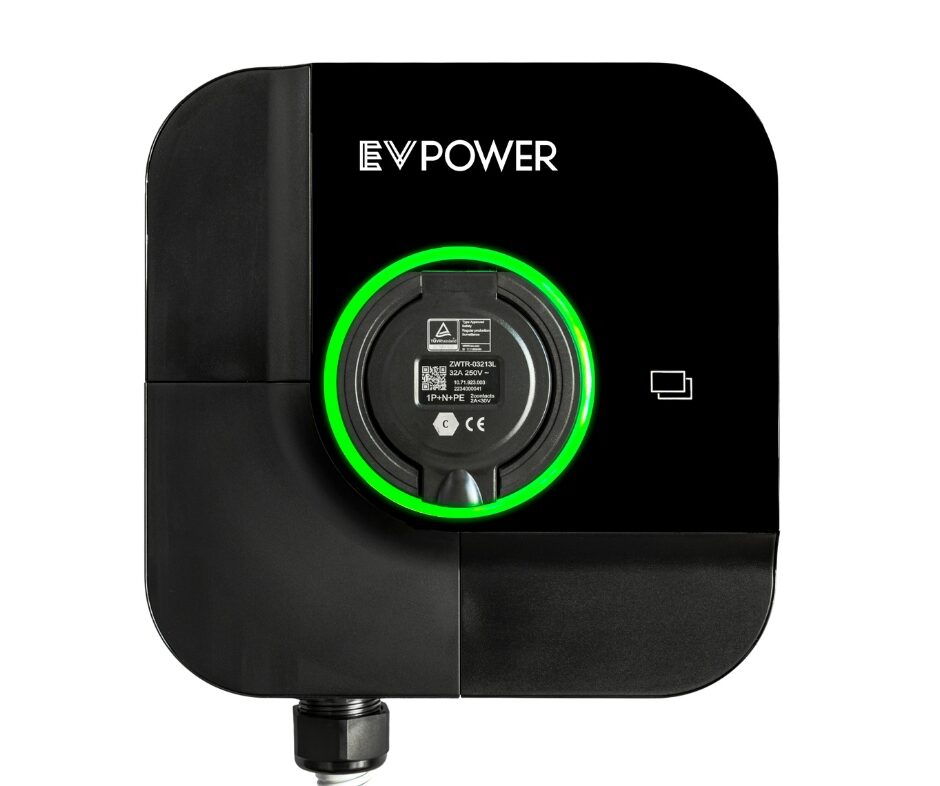

Ecolink 32 Amp Wall Charger (OCPP) with CT Clamp Package

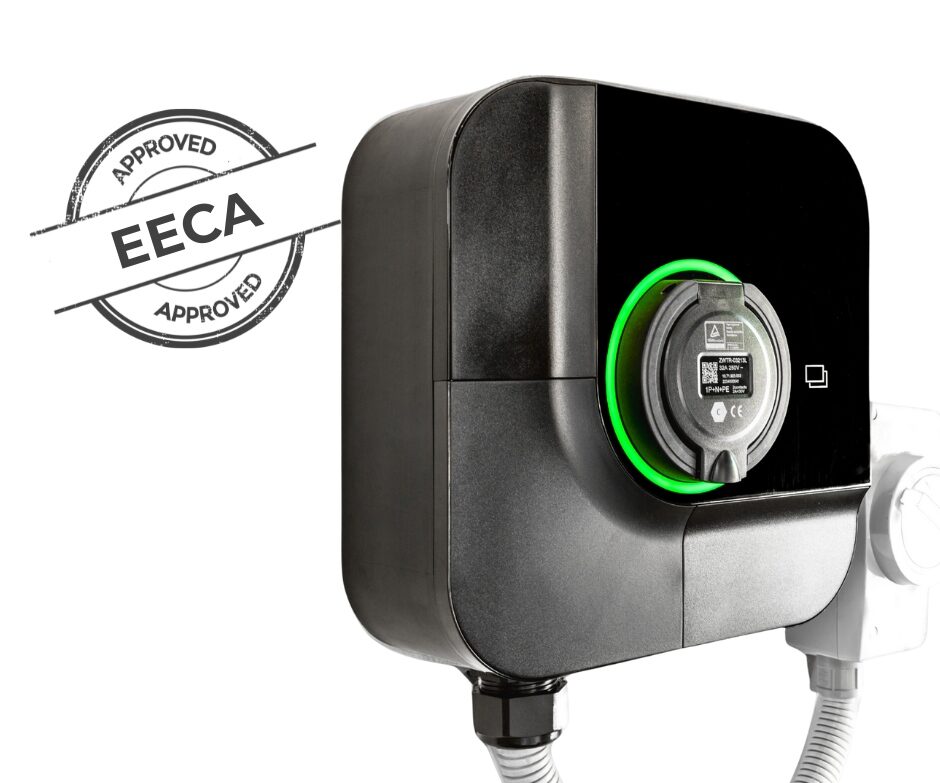

This EECA-approved device meets the EV Smart Charger Approved List criteria.

Suitable for domestic use and for charging at small businesses, the Ecolink Wall Charger is OCPP-enabled, ready to be connected to any grid management (if required). OCPP is a language which EV chargers use to talk to each other and central management systems. When the grid requires wall chargers to operate in this way the Ecolink can be easily connected to the power management company of your choice.

Robust and compact, this Smart Ecolink wall charger is single phase and can charge EVs/PHEVs at a rate of 40km of range per hour of charging (depending on your car’s battery – consult your car owner’s manual). Comes with 2 RFID cards so that you can prevent unauthorised access and a CT clamp.

Customise using the Hcharger App – set up timers, view charging data, process firmware upgrades and more. Watch our walkthrough video on how to use the app on YouTube here.

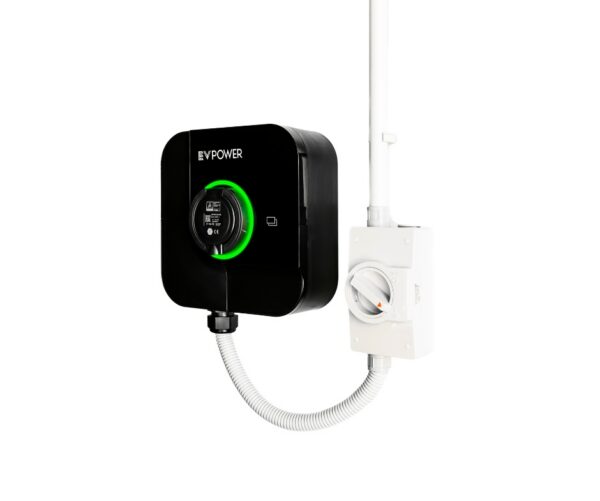

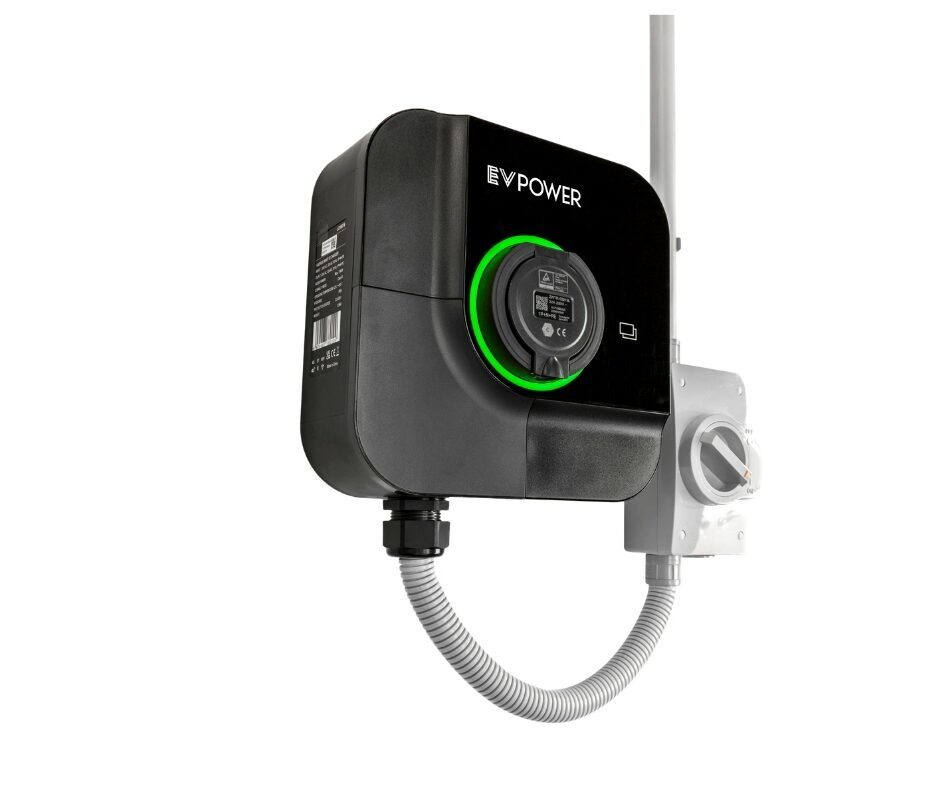

Supply your own Type 2 charging lead, view our range here. Please note Isolation Switch pictured is sold separately.

The Ecolink EV Wall Charger represents the pinnacle of EV charging technology, seamlessly combining cutting-edge features with user-friendly functionality. Designed to cater to a wide range of users, from individual homeowners to large-scale businesses, this innovative charger is set to transform the way we think about electric vehicle charging.

SOLAR

If you are planning on charging your EV/PHEV straight from your PV system the Ecolink Wall Charger can work with your solar panel technology.

IMPORTANT

This product must be installed by a registered, qualified electrician. Please refer to our T&C’s.

SDocs available contact us for a copy

SPECIFICATIONS

Rated power: 7.4kW, 22kW options to suit your charging needs
Type of Connection: 1P+N+PE, 3P+N+PE, compatible with 6-10mm2
Nominal Supply: 230V AC+/-15%, 400V AC+/-15%
Rated Frequency: 50Hz consistent and reliable
Adjustable Current: 6A – 32A Variable (via app)
Over Current Protection: 40A Supply + external MCB for added safety
RCD Protection: Built-in 30mA Type A RCD+6mA DC Protection (equivalent to Type B)
Standby Power Consumption: <8W which is very low
Integrated Protections: Comprehensive package. Over and under voltage, power overload, short circuit, dispersion currents, missing ground connection, surge, over temperature
Connectivity: Bluetooth/WiFi/Ethernet/4G/RS485 Control charging with the Smart App Built-in RFID reader, OCPP1.6J
Solar Compatibility: Seamlessly integrates with solar energy systems for sustainable charging
Load Balancing: Yes
Installation Network: TN, IT and TT
Housing Material: PC+ASA(UL94 V-) fire rated
Mounting: Wall or pedestal

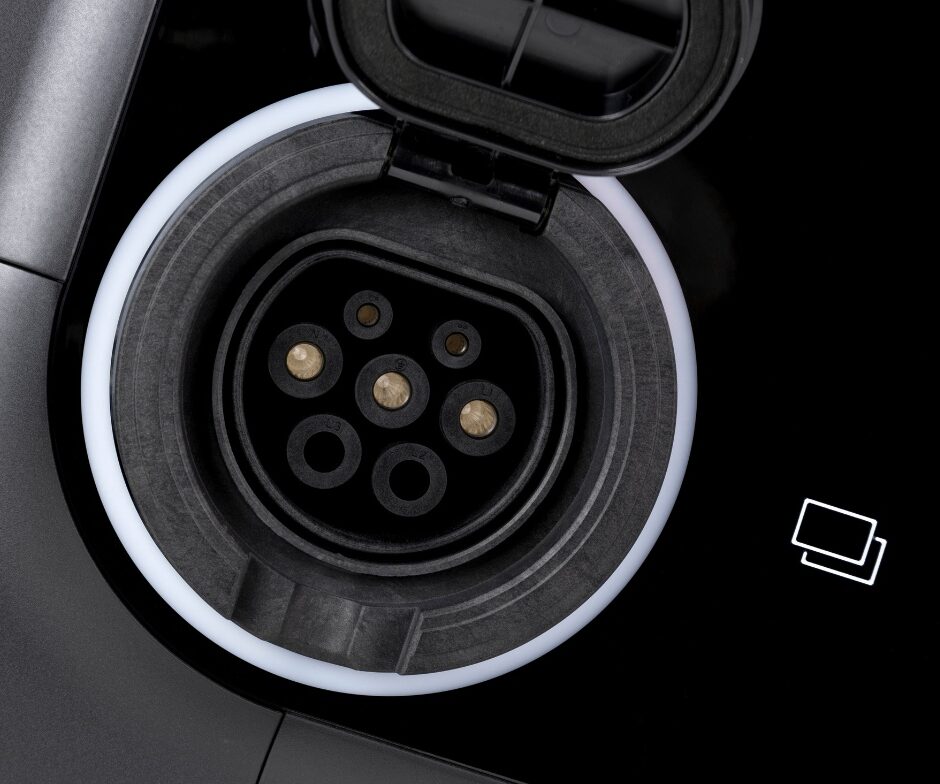

Protection (enclosure): IEC 62196 Type 2 with IP55 hinged lid, and the electrical lid is IP55 (Socketed) plus iK10 for durability
Operating Temperature: -25 °C – 50 °C
Humidity: 5% -98% non condensing
Installation: Indoor / outdoor
Dimensions: (HxWxD) 260 x 260 x 100/130 (mm)
Weight Socketed: 2.5kg
Certification: CE,RoHS, REACH and TUV

Warranty: 3 years

App: Download from App Store or Google Play

Multi-unit connection capability
