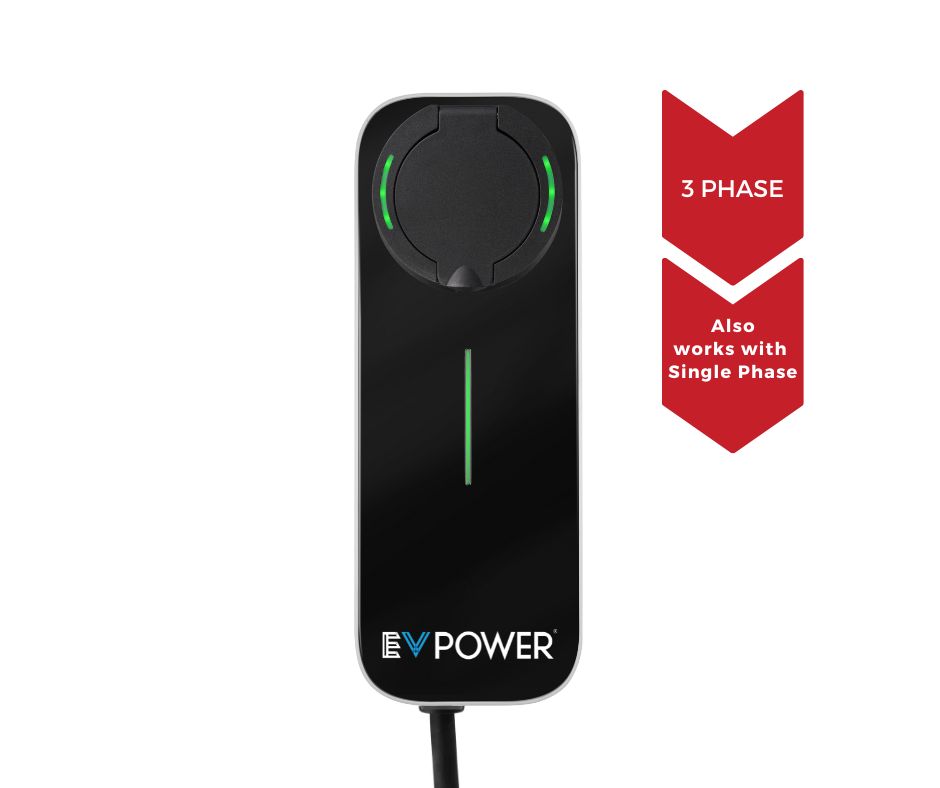

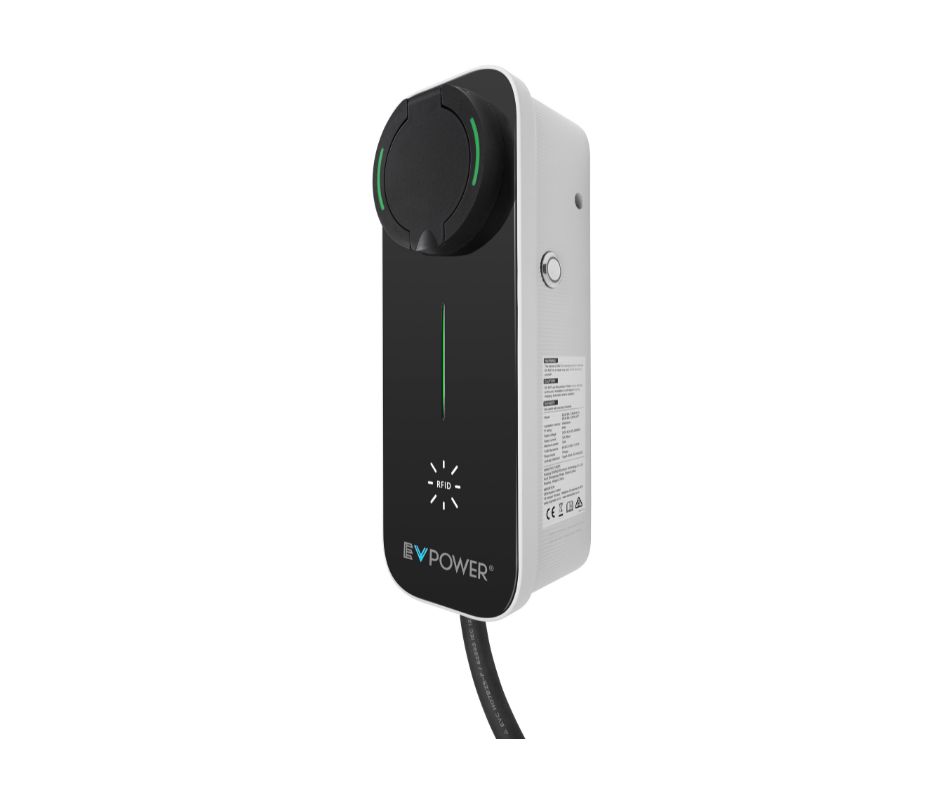

SlimLine Smart 22kW 3P Wall Charger (32A) RFID

Modern design. Reliable performance. NZ-ready. Don’t let the price fool you — these units are seriously capable.
EV Power Slimline: Stylish, smart, and built for NZ.

• The EV Power Slimline Wall Charger delivers all the features you need in a compact, stylish smart wall charger that’s built for New Zealand homes and businesses.
• Perfect for homes and light commercial installs, this version offers reliable charging up to 22kW via a Type 2 socket. Connect effortlessly via the Bluetooth-linked app to schedule charging, adjust current, or monitor status.

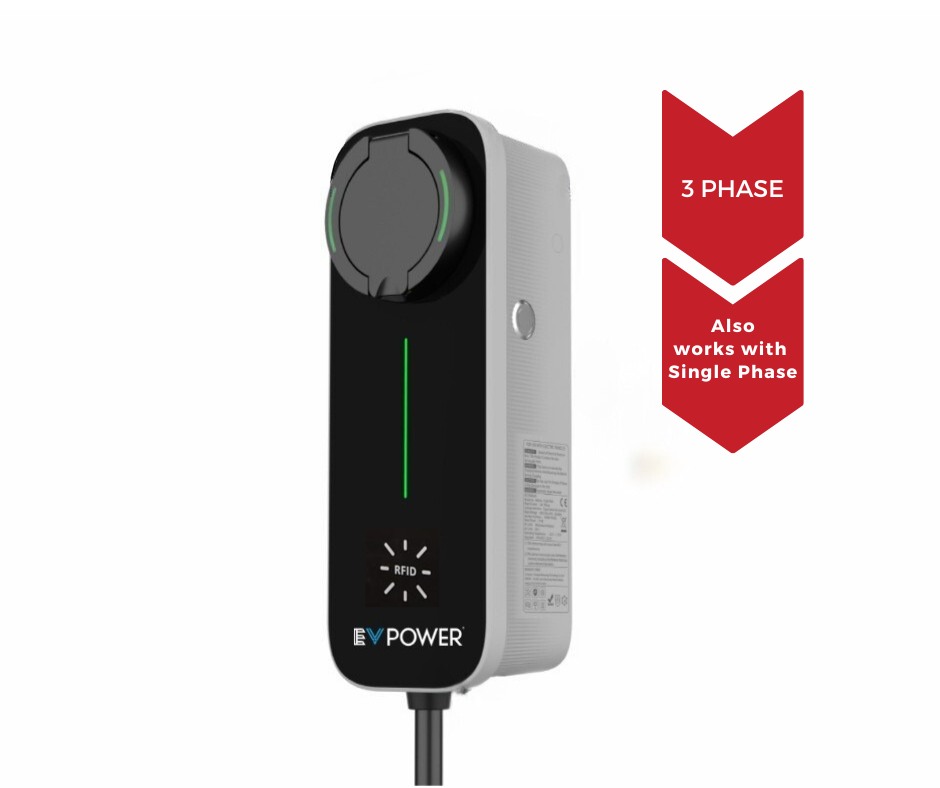

• RFID card support is built in for simple tap-and-go charging — ideal for shared driveways or staff use.
• Includes 6mA DC Detection, no requirement for RCD Type B at installation. Note: Electrician will need to wire in an isolation switch and supply RCBO at your switch board.

Key Features:

• Fully compliant with AS/NZS 3000 and IEC 61851.
• Sleek wall-mounted design (IP66 rated for NZ weather).

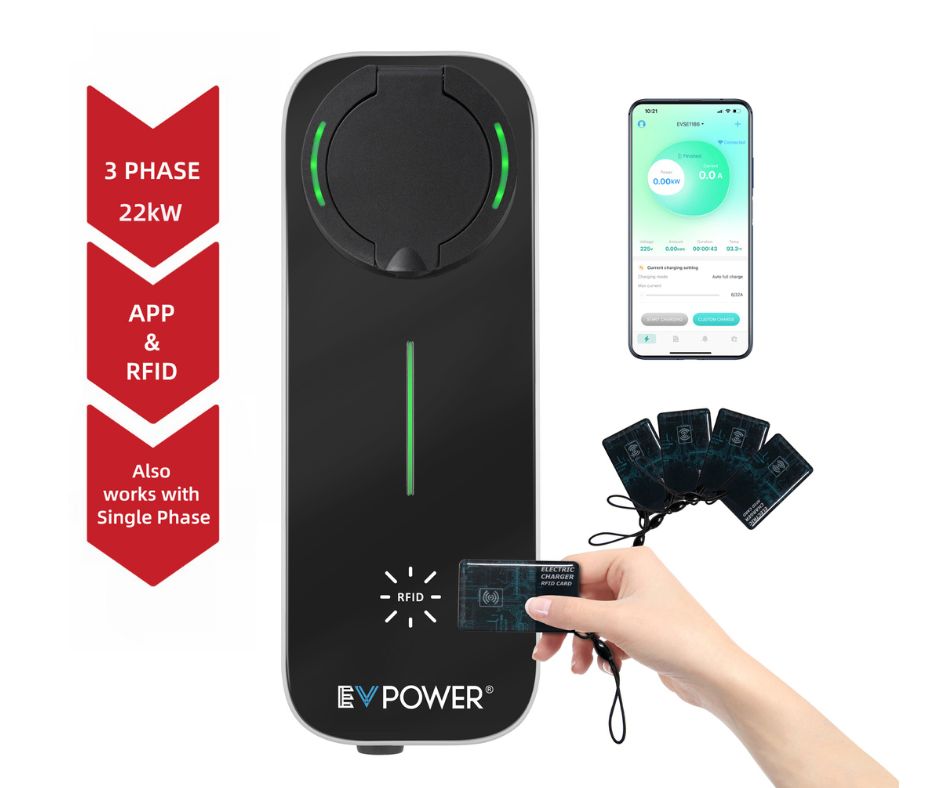

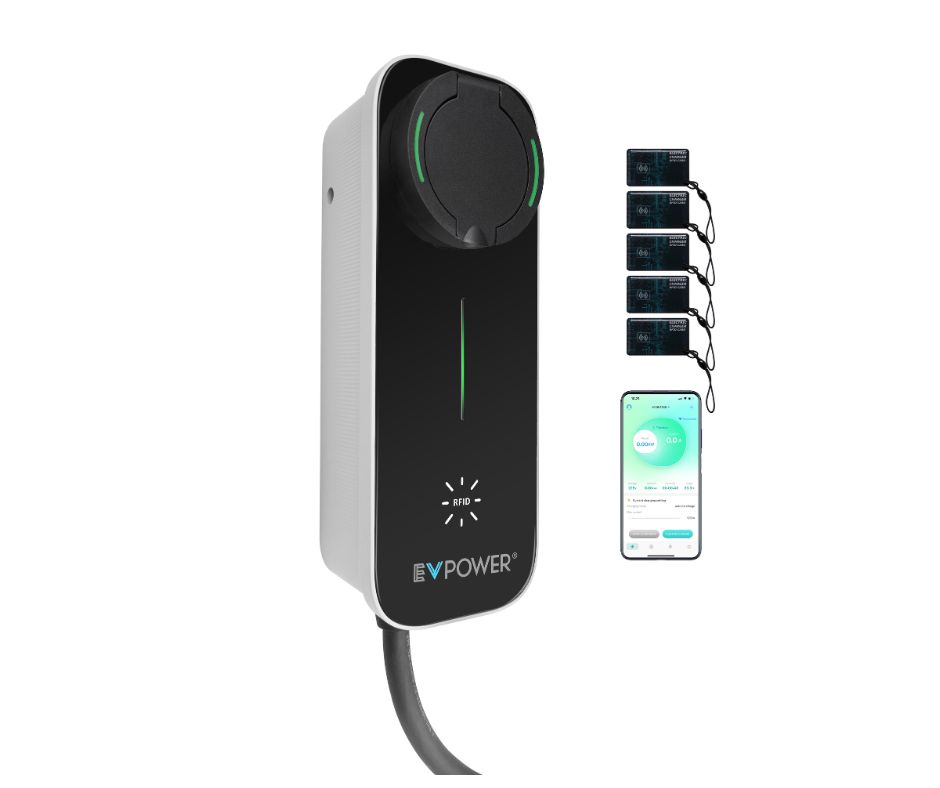

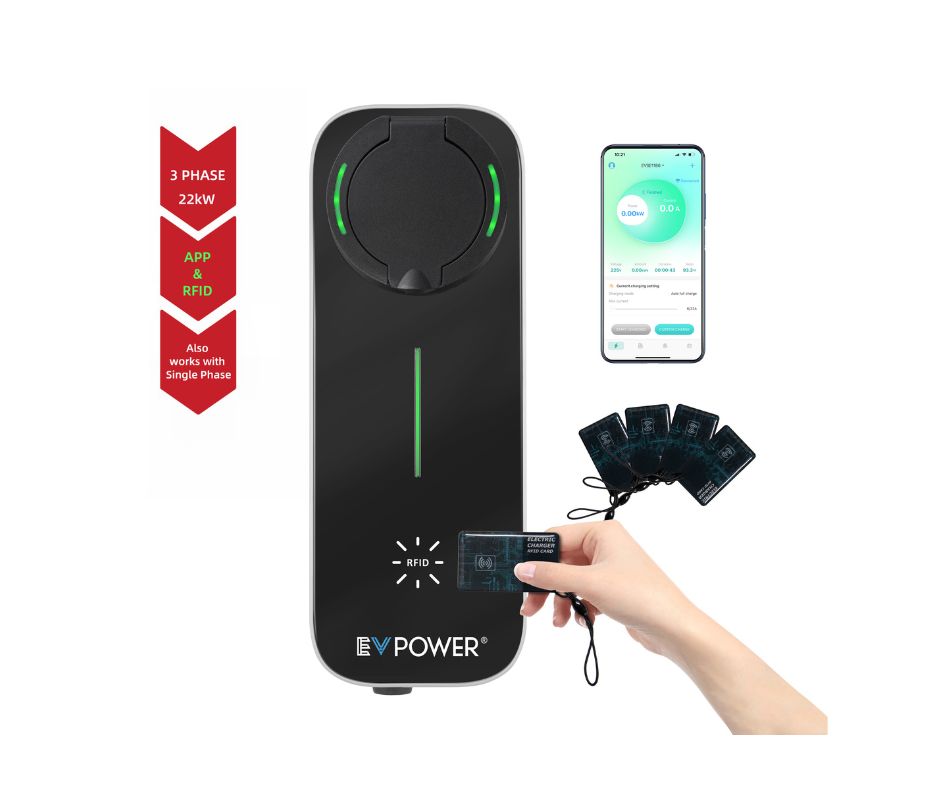

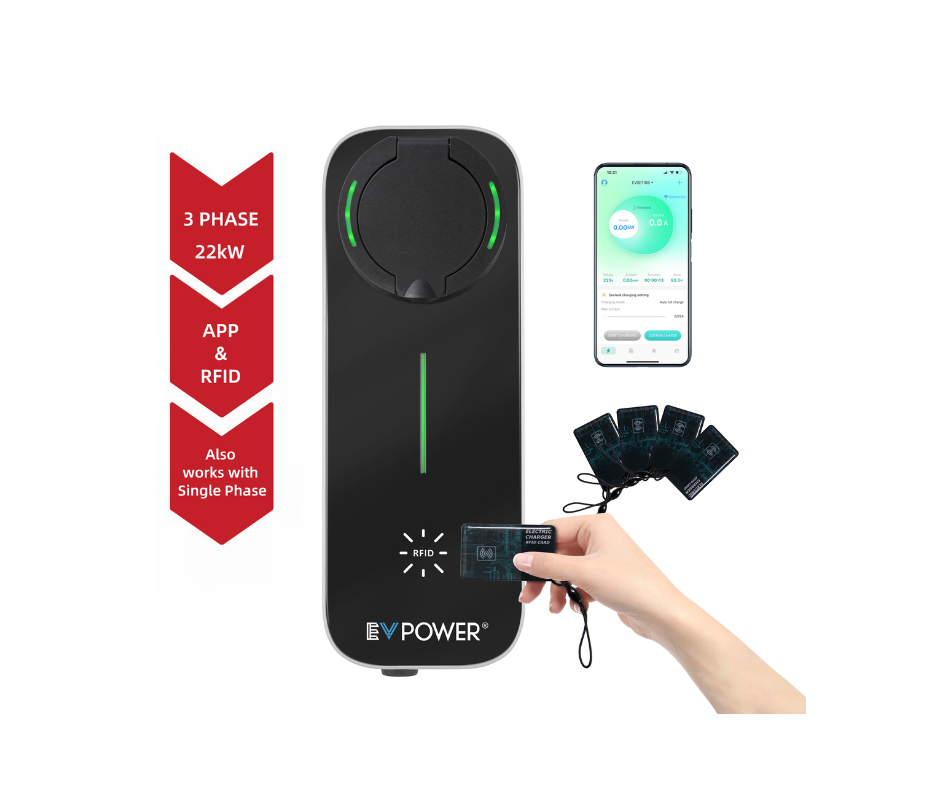

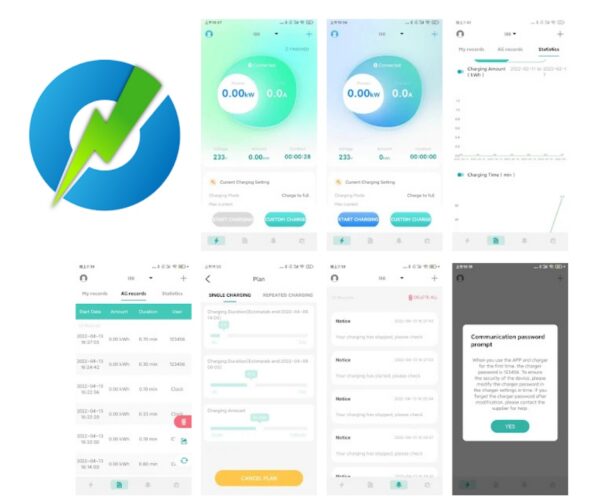

• EVSE Master App + RFID control out of the box.
• Single or three-phase options.

Specifications:

• Input: 400V (3P), 50Hz
• Output Power: maximum 22kW (3P)
• Max Current: 32A model available
• Charging Mode: Mode 3 (IEC 61851-1)
• Start Methods: App / RFID Card / Button / Auto
• Protection: Type A RCD + 6mA DC detection (IEC 62955)
• Connectivity: Bluetooth (default) Unit can be made plug-and-play if wanted.
• Enclosure: ABS + PC alloy, IP66 rated
• Operating Temp: -25°C to +40°C
• Mounting: Wall or optional stand
• Plug Type: Universal Type 2 (socketed)

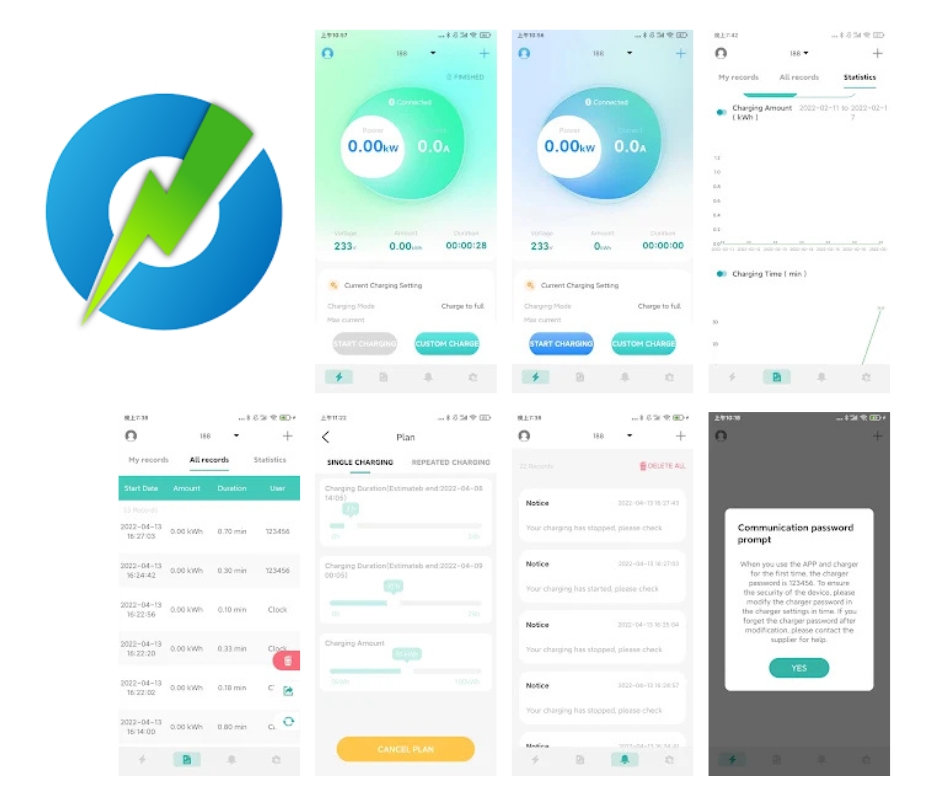

• App is named EVSE Master
• 12 cm W x 10/8.7 cm D x 32.5 cm H
• 2.5 kg

Warranty:

Full 3-year NZ warranty and local support.
