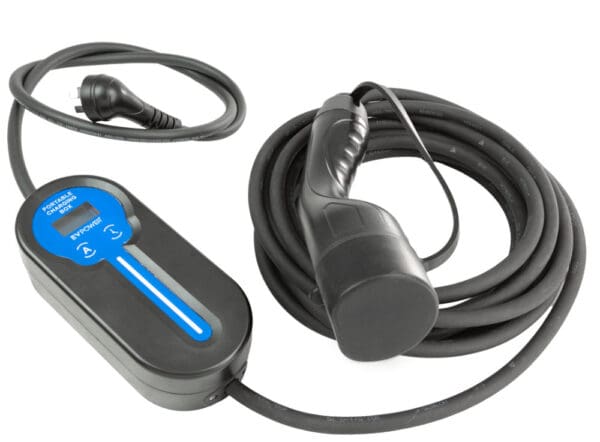

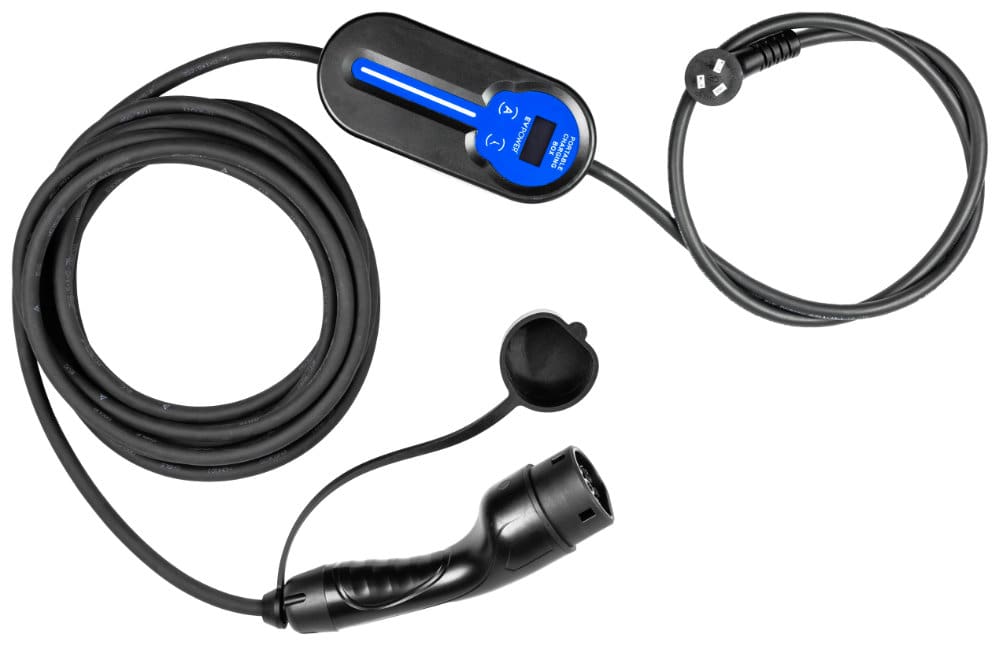

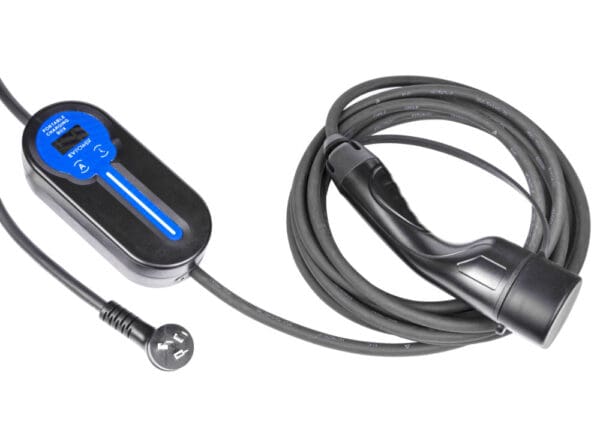

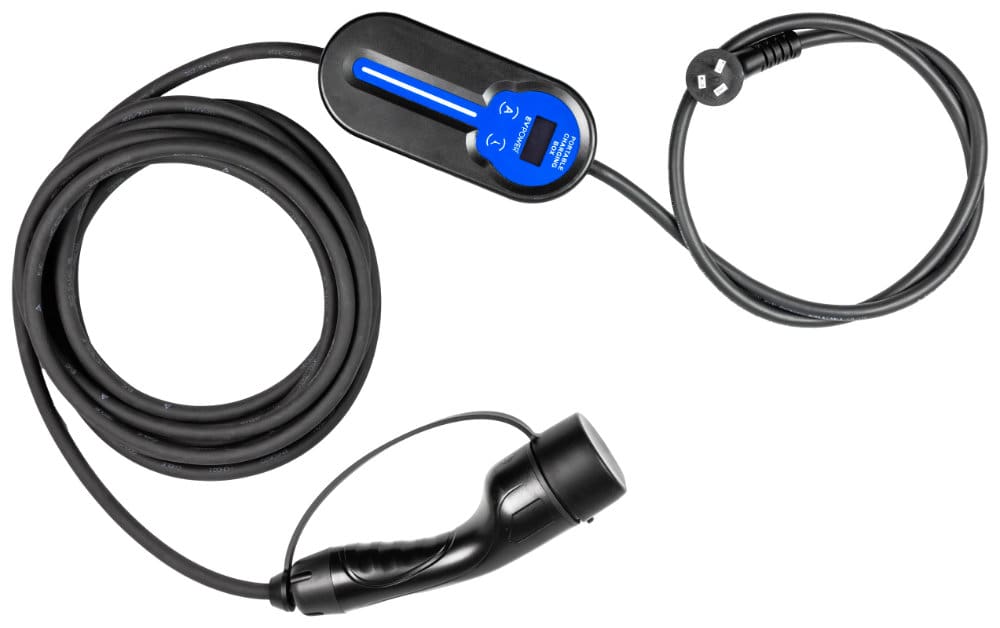

Classic Plus 3.0 Type 2, Charger Cable, 10 Amp

Charge your vehicle safely and efficiently with our Classic Plus 3.0 Type 2 EV Charger Cable. This EV Power Type 2 Plug is designed to provide reliable charging at up to 10 Amp with new and improved super tough construction – it also features 6 mA DC detection and Delayed Start (up to 12hrs).

Simple and easy to use, just plug in at the wall (no extension cords to be used) and set to your choice of 6, 8 or 10 Amps. plug in to your vehicle and let your car charge.

This 8.2m long (total length) charging cable is suitable for domestic situations and has safety features for peace of mind charging at home.  Our well-engineered cable is made to IEC 62752, the latest and toughest standard for portable charging equipment.

Compatibility:

• Suitable for vehicles with a Type 2 inlet, typically found ex-UK and NZ new vehicles. If you have any doubts about compatibility, please don’t hesitate to contact our knowledgeable team at our fully-equipped showroom.

LCD screen with full rotating readout – Amp display, temperature display, time charging, and kWh delivered. This cable importantly has a reset feature for minor faults detected in the power supply. It’s perfect for Type  2 PHEV charging too.

Please provide all Portable Charging Cables with some shelter during use from persistent rain. EV portable charging cables are water resistant, not waterproof or submersible. Learn more about IEC 60529 here

DURABLE:

• Water-resistance – IP-65
• 10,000 Charging Cycles
• Cable Strain Relief Feature – endures 100kg of weight on the main box

SPECIFICATIONS:

• Working Current: 6, 8 or 10A Switchable
• Delayed start of up to 12 hours
• Working Voltage: 230V AC
• Cable Length: 8.2 m end to end

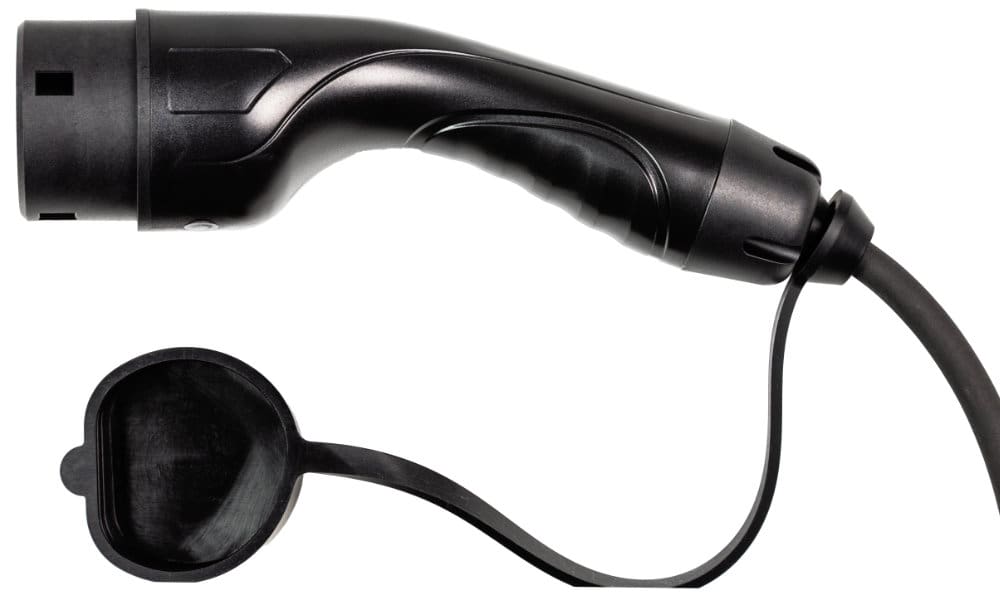

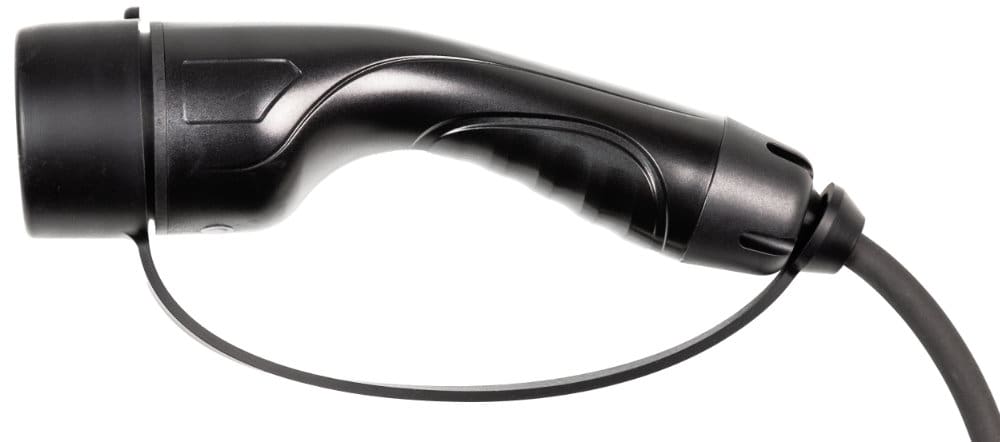

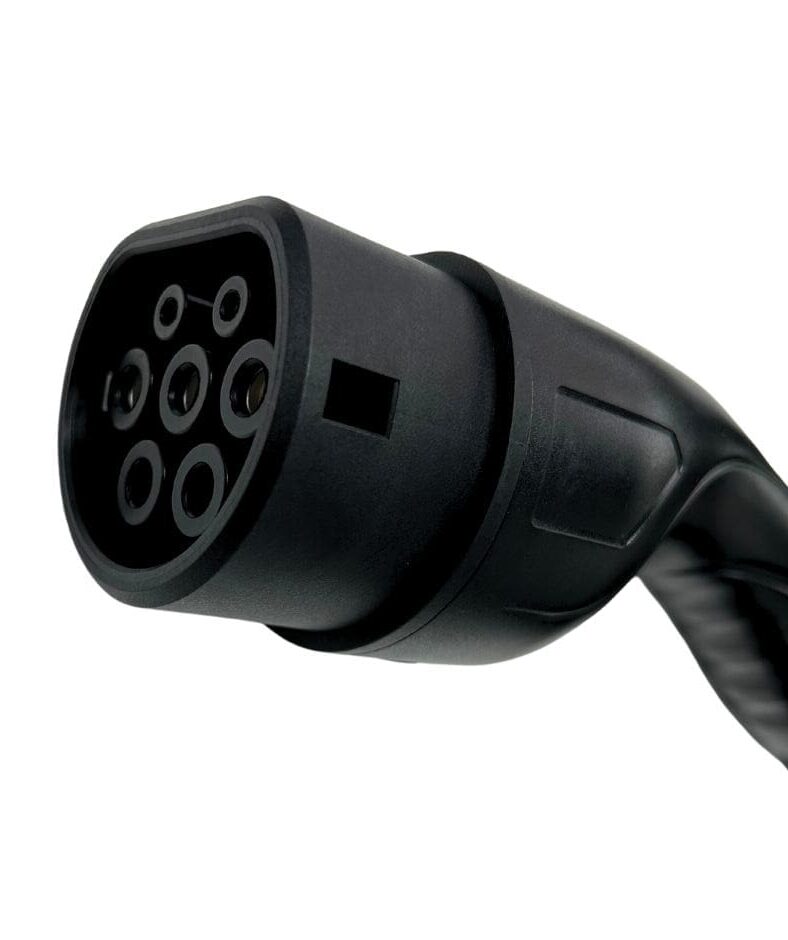

• Charging Plug: Type 2 Plug
• 30 mA AC + 6 ma DC detection as an alternative to RCD type B

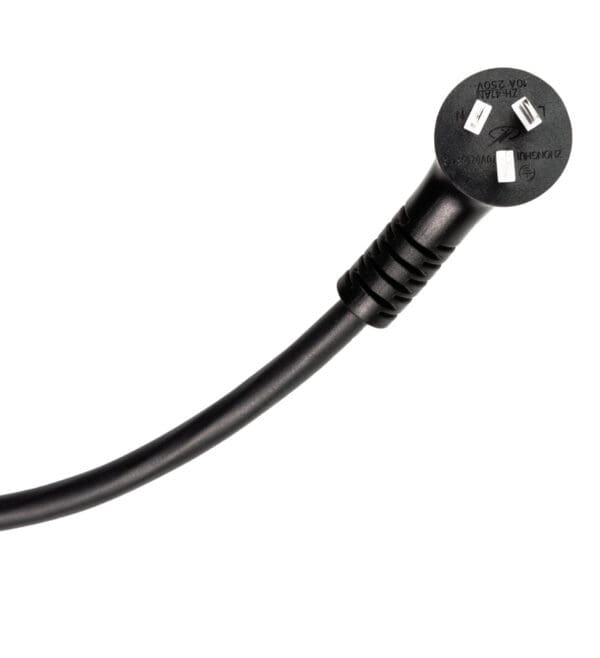

• Power Plug: New Zealand/ Australia Plug with temperature sensor at pins for added safety.
• Rated Power: 2.2kw
• Voltage Range: 230V ± 10%
• LCD panel indicates charging status
• Operating Temperatures: -30° To +50°
• 2-year warranty
• Smooth line design

SAFETY FEATURES:

• Auto charge recovery
• Overcurrent protection
• Insulated Terminal Design
• Overvoltage protection
• Lightning protection
• Electric leakage protection
• Earth leakage protection
• Temperature sensor at the three pins
• 6mA DC detection

Complies fully with IEC 62752. SDoC is available on request.
