LRCD Plus Type 1 10 AMP Portable Charger Cable 7m

The EV Power LRCD Plus 10 Amp Portable Charger Cable is for NZ-new/Ex-UK Type 1 vehicles.

This portable charging cable with a a Mode 2 10 Amp IC-CPD features adjustable current allowing you to charge your Type 1 EV at a rate that suits you.

The LRCD Plus Portable Charger incorporates full safety protection, and is compliant for use in NZ.

• Timing delay: Set charging to start when power prices are lowest.
• Charging Timer: Program the charging duration.
• Temperature sensors at the pin.
• Everyday home charging.
• Travel.

Compatibility

This EV charging cable will only fit Type 1 EV/PHEV. Ff you are unsure please see our helpful page on identifying your EV here.

Key Features

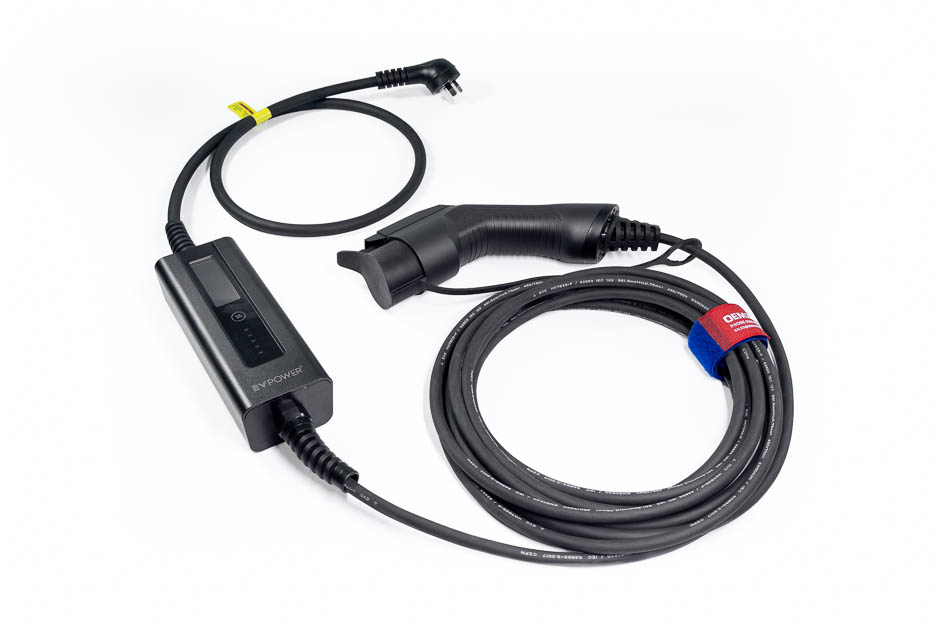

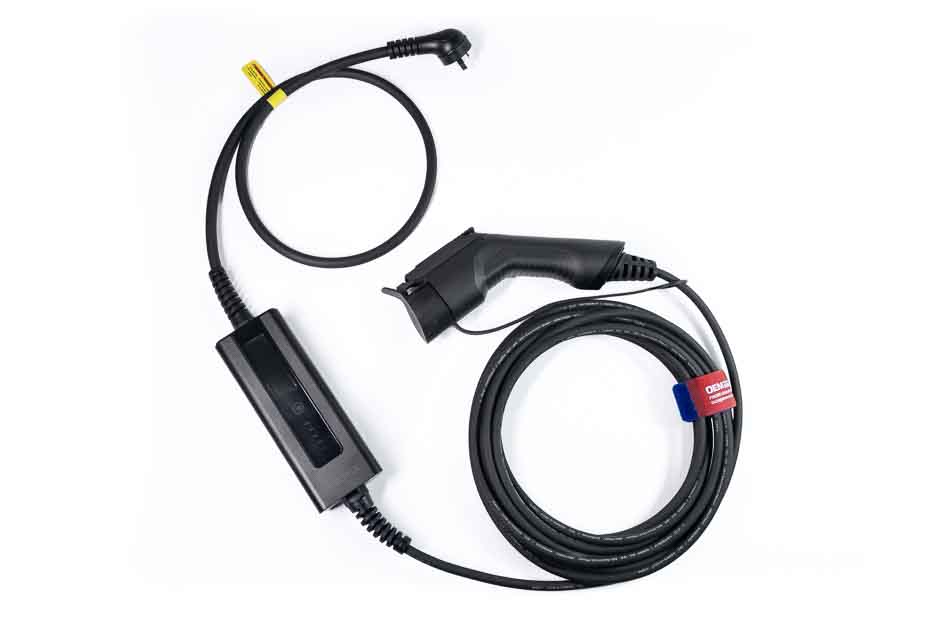

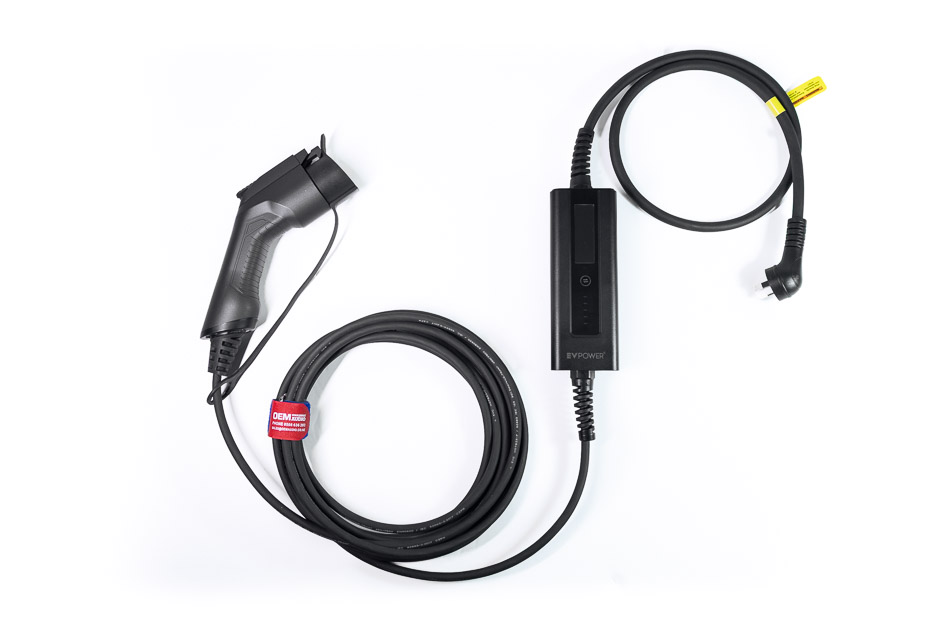

• Total cable length of 7m, (1m inlet lead + 6m vehicle charging cable).

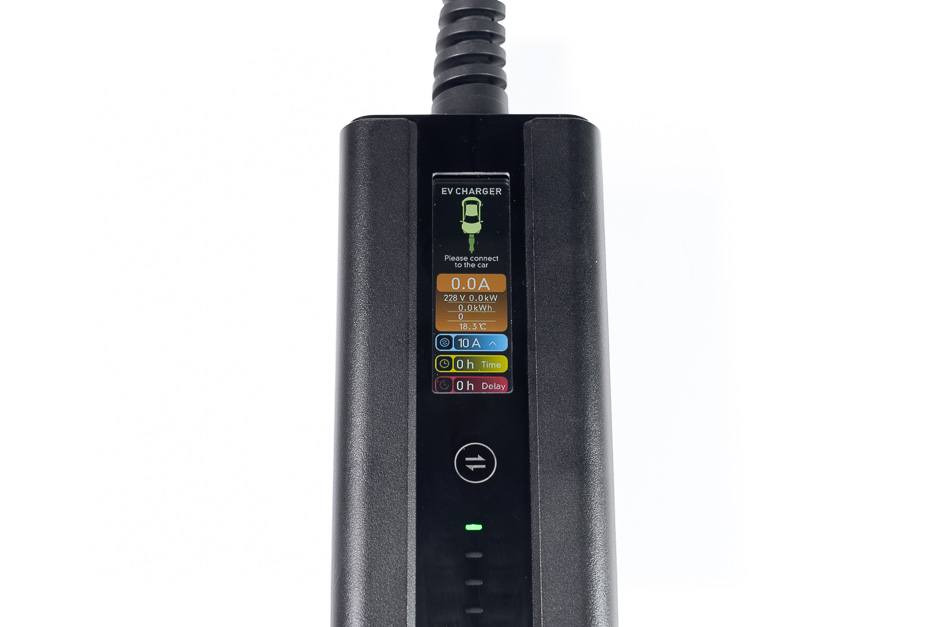

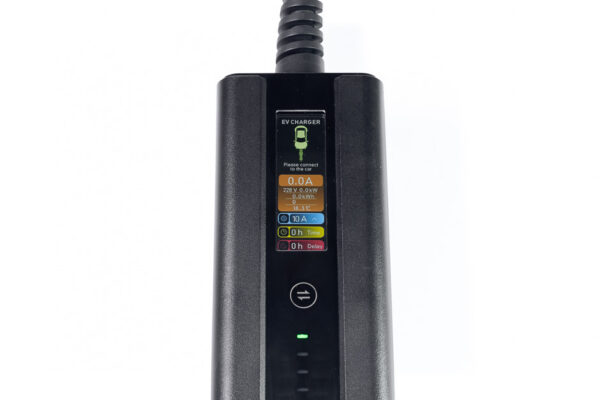

• Extra large 2.6″ colour display.
• Switchable between 6A, 8A, and 10A, allowing the charging current to be reduced. Perfect when using older wiring, shared circuits, or locations with limited power capacity.
• 6 mA DC residual direct current detection, allowing use with a standard Type A RCD where permitted.

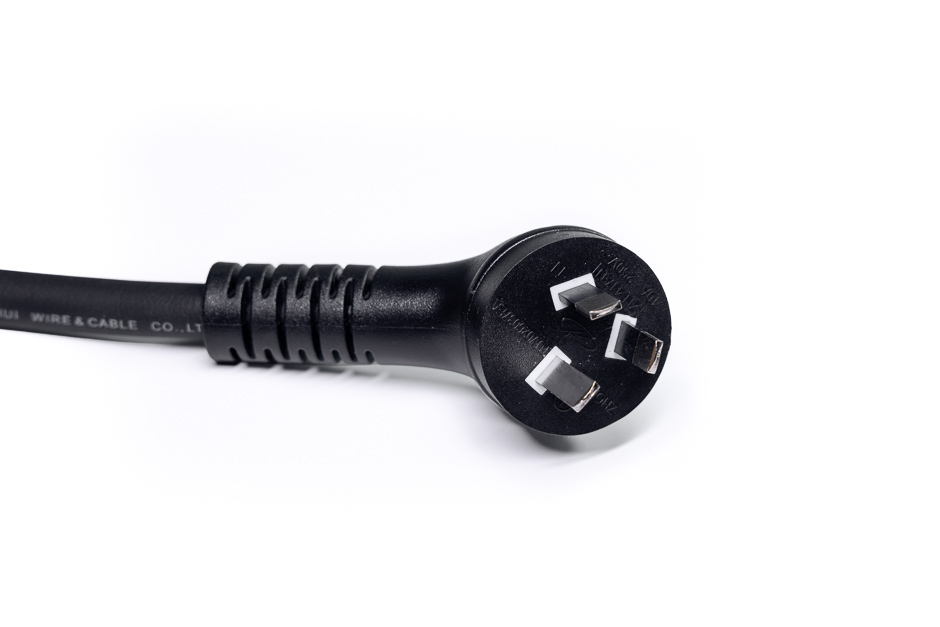

• An integrated temperature sensor within the AU/NZ three-pin plug continuously monitors plug temperature during charging. If abnormal temperature rise is detected, charging is automatically interrupted to reduce the risk of overheating.
• IEC 62752 requirements met for portable EV charging equipment.

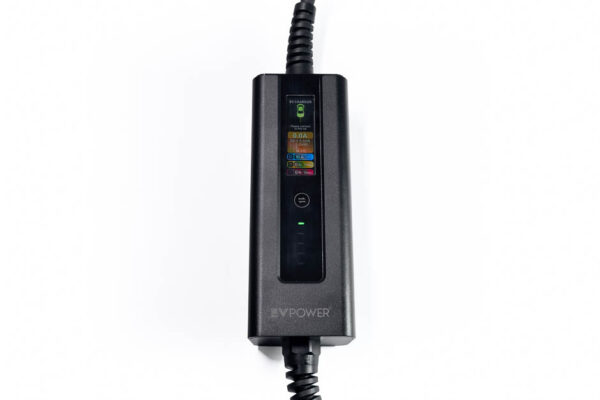

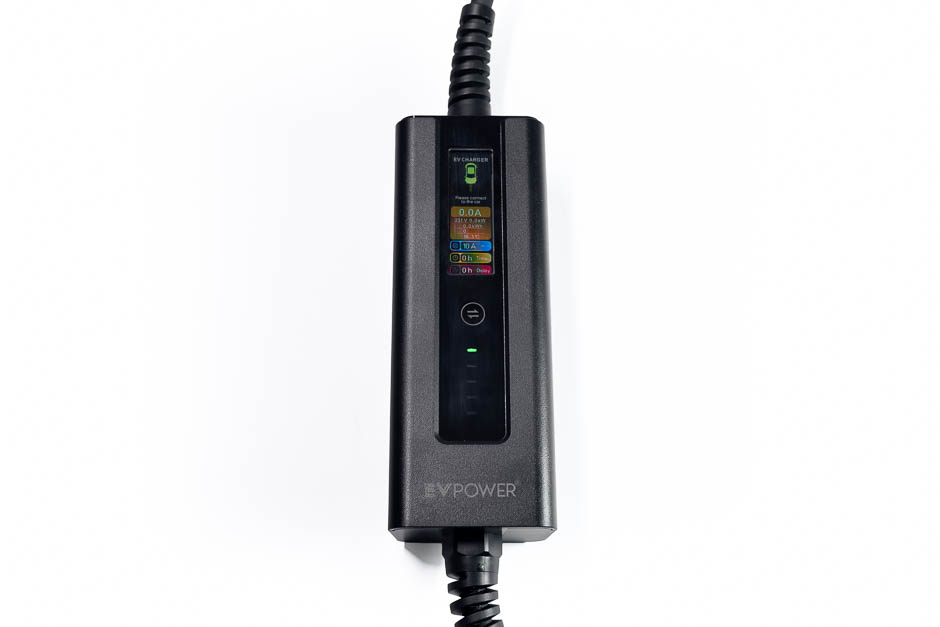

• Compact in-line control box.
• Status indication lights
• Earth leakage protection.
• Under voltage protection.
• Over load protection.
• Short circuit protection.
• Over-temp protection.
• Lightning protection.

Specifications

• Input voltage: 230V AC/50 Hz
• Single-phase
• Selectable current: 6/ 8 / 10 Amps
• Maximum output power: 2.3 kW (at 10A)
• Charging mode: Mode 2 (IC-CPD)

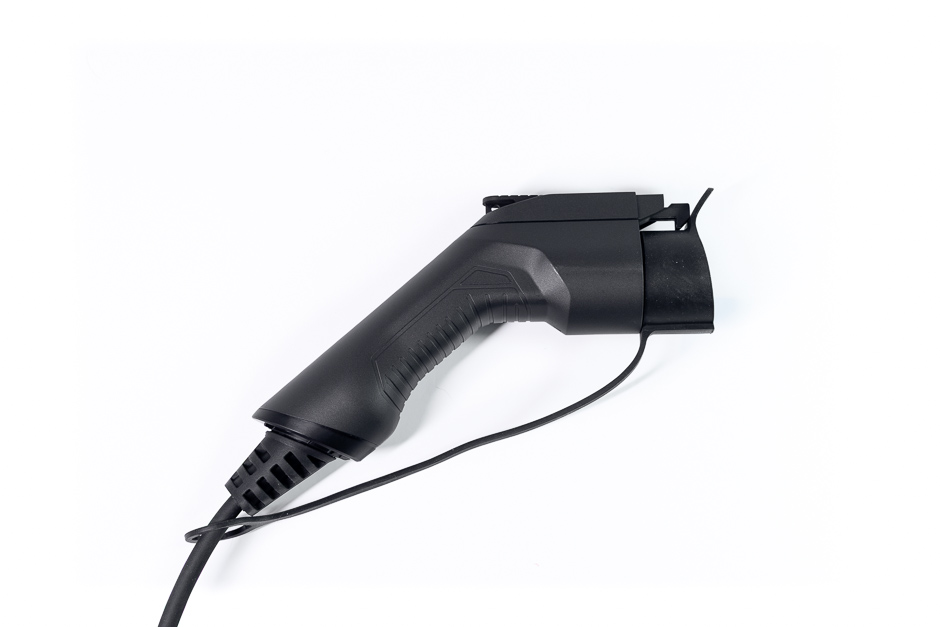

• Vehicle connector: Type 1 (SAE J1772)
• Residual current protection: 6 mA DC detection (RDCDD)
• Plug temperature monitoring: Integrated sensor at AU/NZ three-pin plug
• Compliance: IEC 62752, CE, RoHS
• Total cable length: 7m
• Inlet cable length: 1m
• Vehicle cable length: 6m
• IP65
• 67/52/196 mm 1.75kg

Add a wall bracket to your order, click here to view online.

Warranty

Two year warranty
